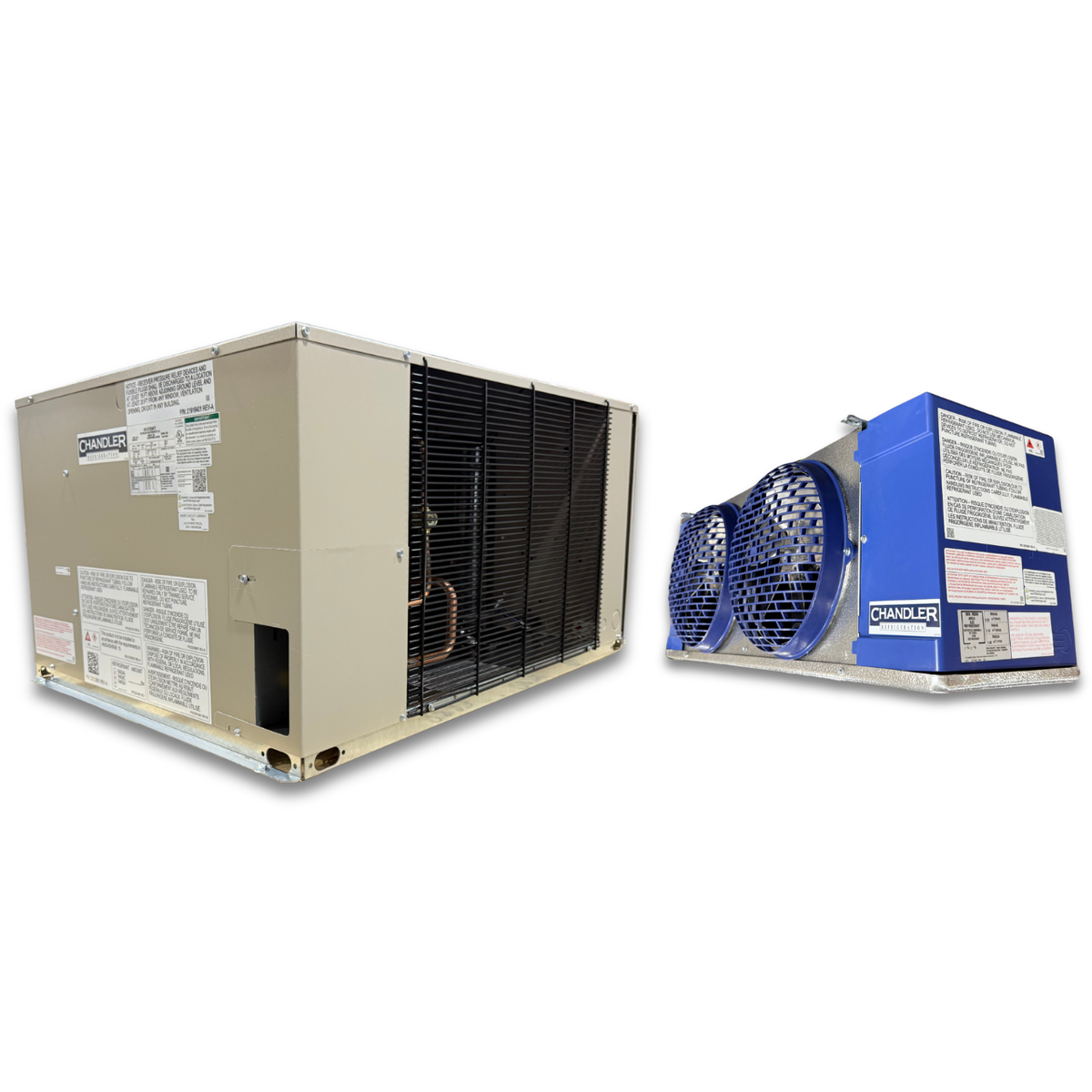

• New 1.5 HP Medium Temp System, 1 phase 208-230 volt — supplier gallery view 1; Beige condensing unit front showing the interior and blue/gray evaporator with two fans front side view showing labels.

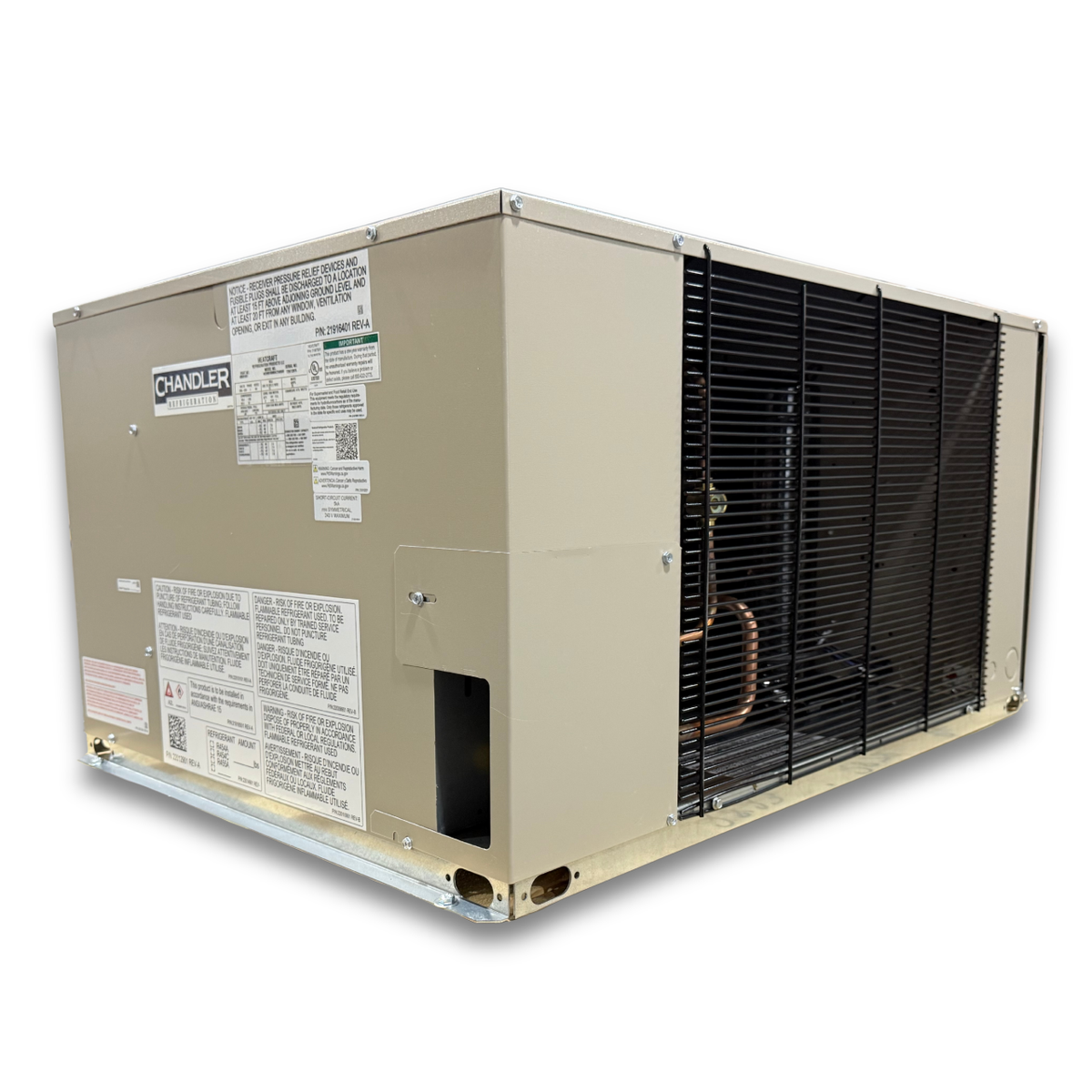

  • New 1.5 HP Medium Temp System, 1 phase 208-230 volt — supplier gallery view 2; Beige condensing unit front showing the interior.
  • New 1.5 HP Medium Temp System, 1 phase 208-230 volt — supplier gallery view 3; Beige condensing unit front side view showing labels.

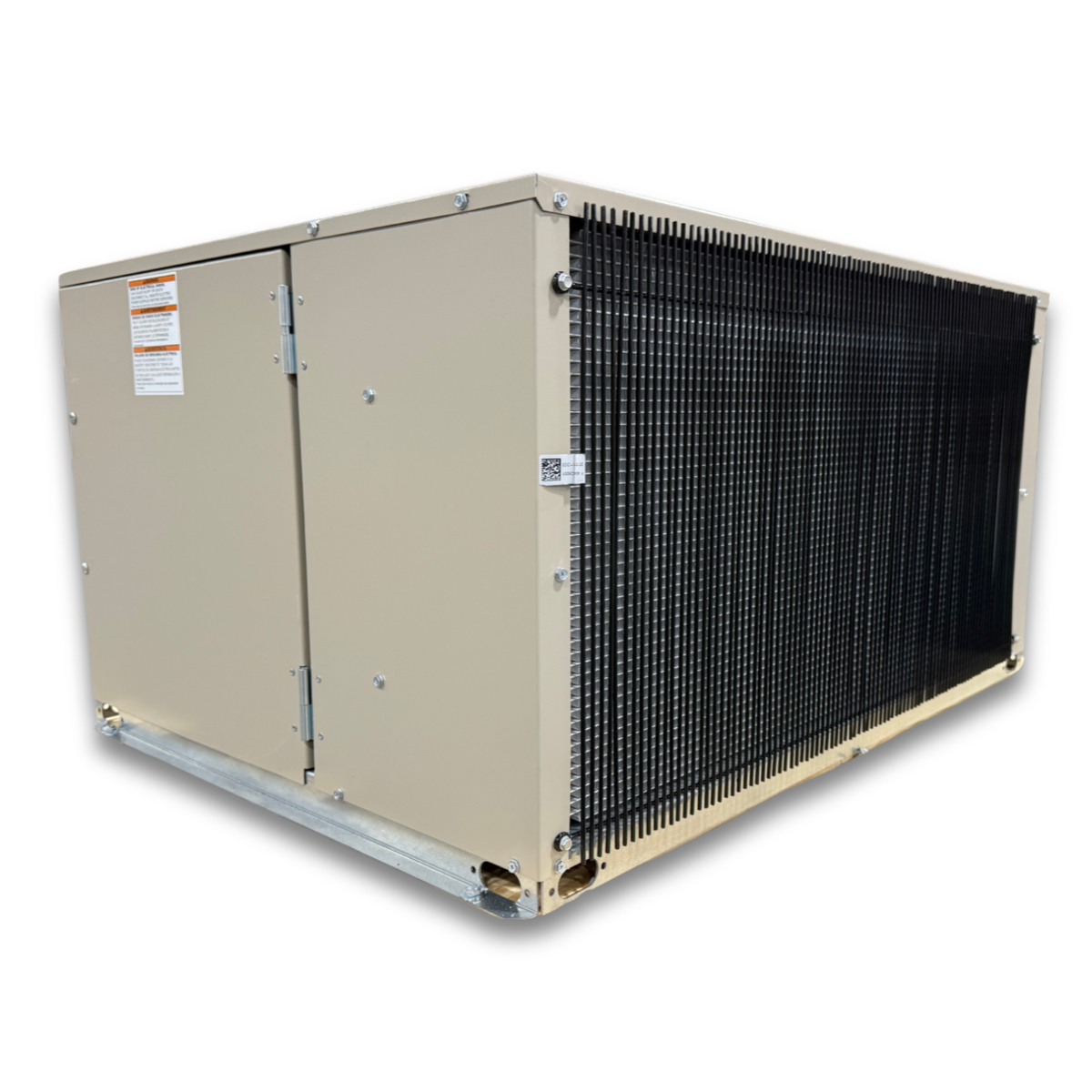

  • New 1.5 HP Medium Temp System, 1 phase 208-230 volt — supplier gallery view 4; Beige condensing unit backside view

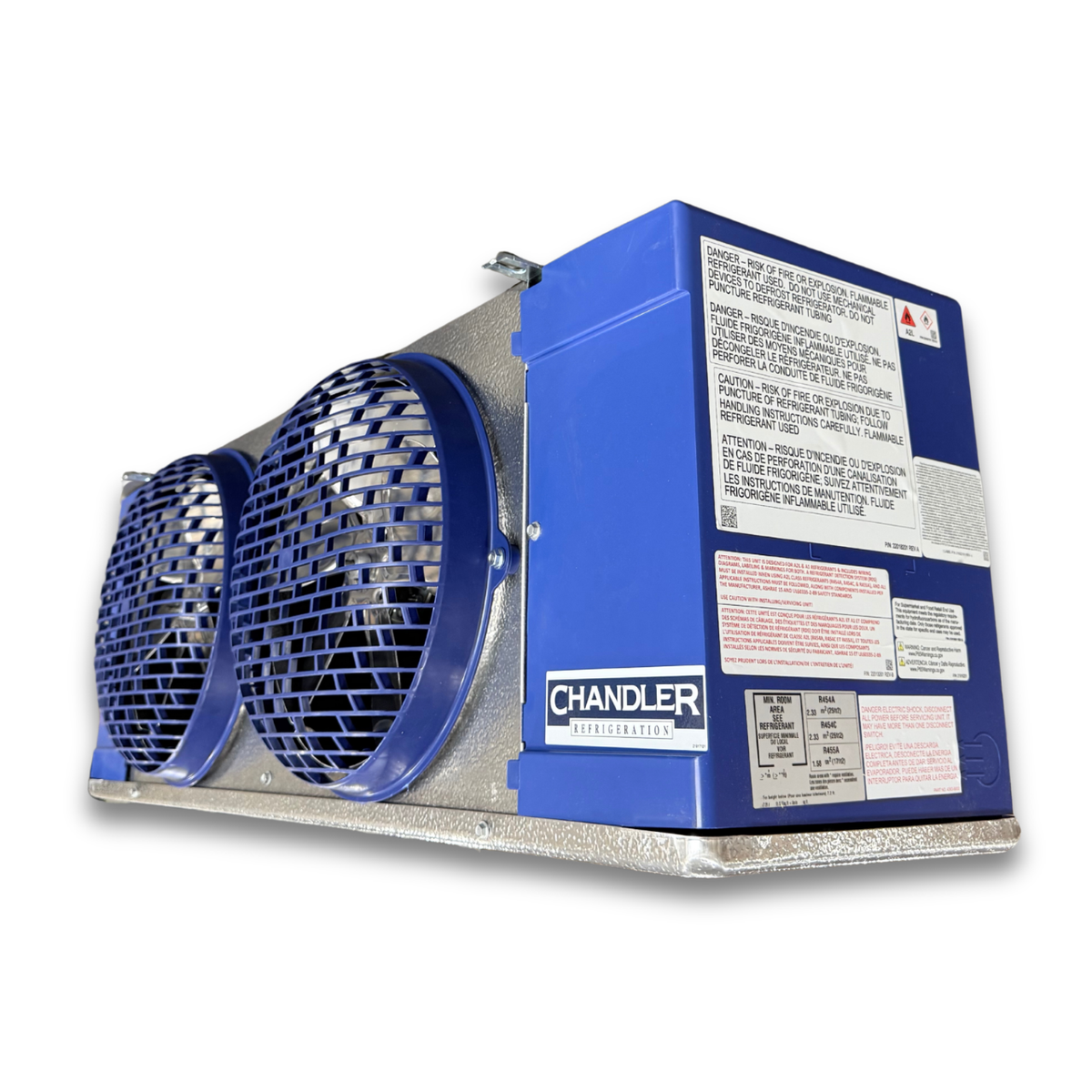

  • New 1.5 HP Medium Temp System, 1 phase 208-230 volt — supplier gallery view 5; Blue/gray evaporator with two fans front side view showing labels.

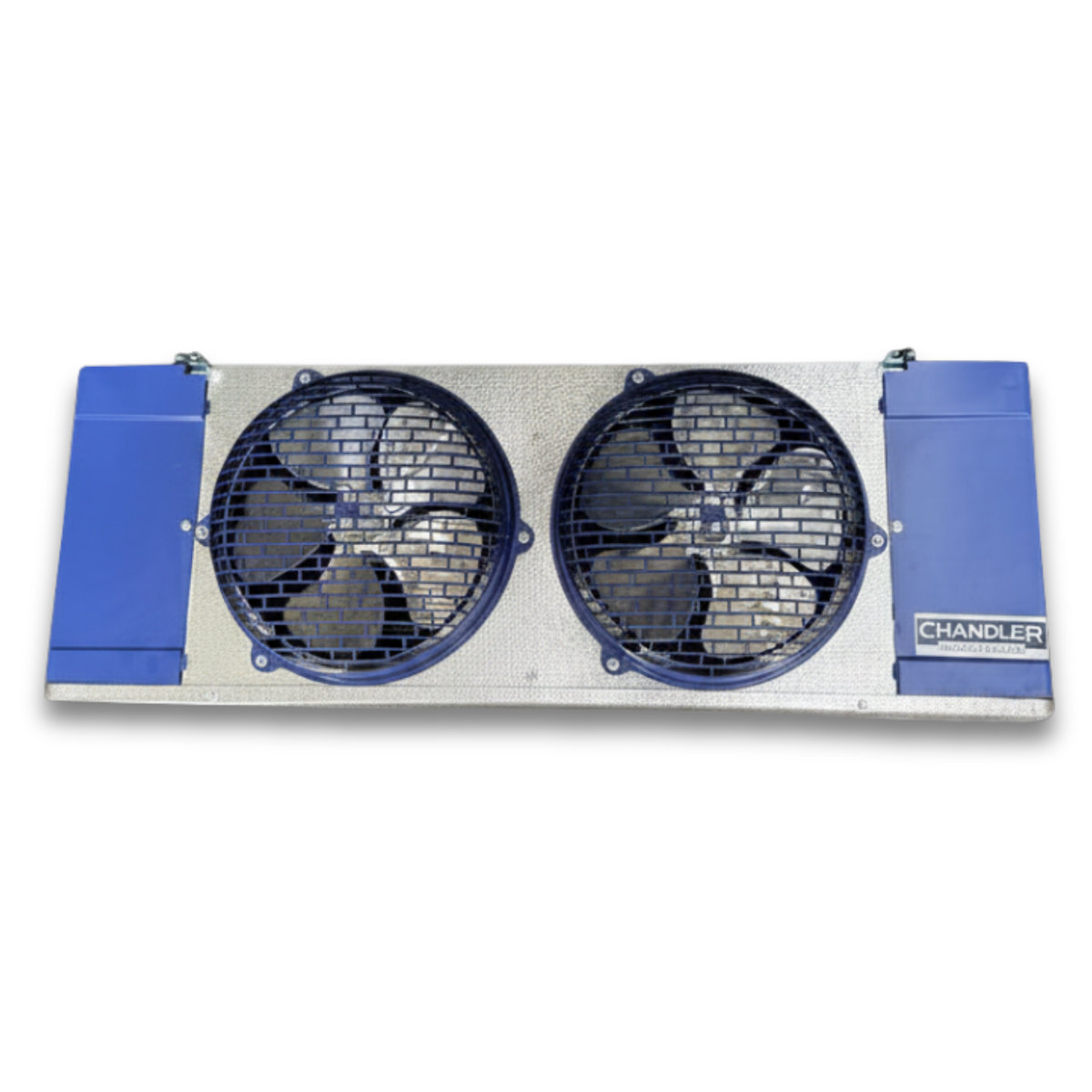

  • New 1.5 HP Medium Temp System, 1 phase 208-230 volt — supplier gallery view 6; Blue/gray evaporator with two fans front view.

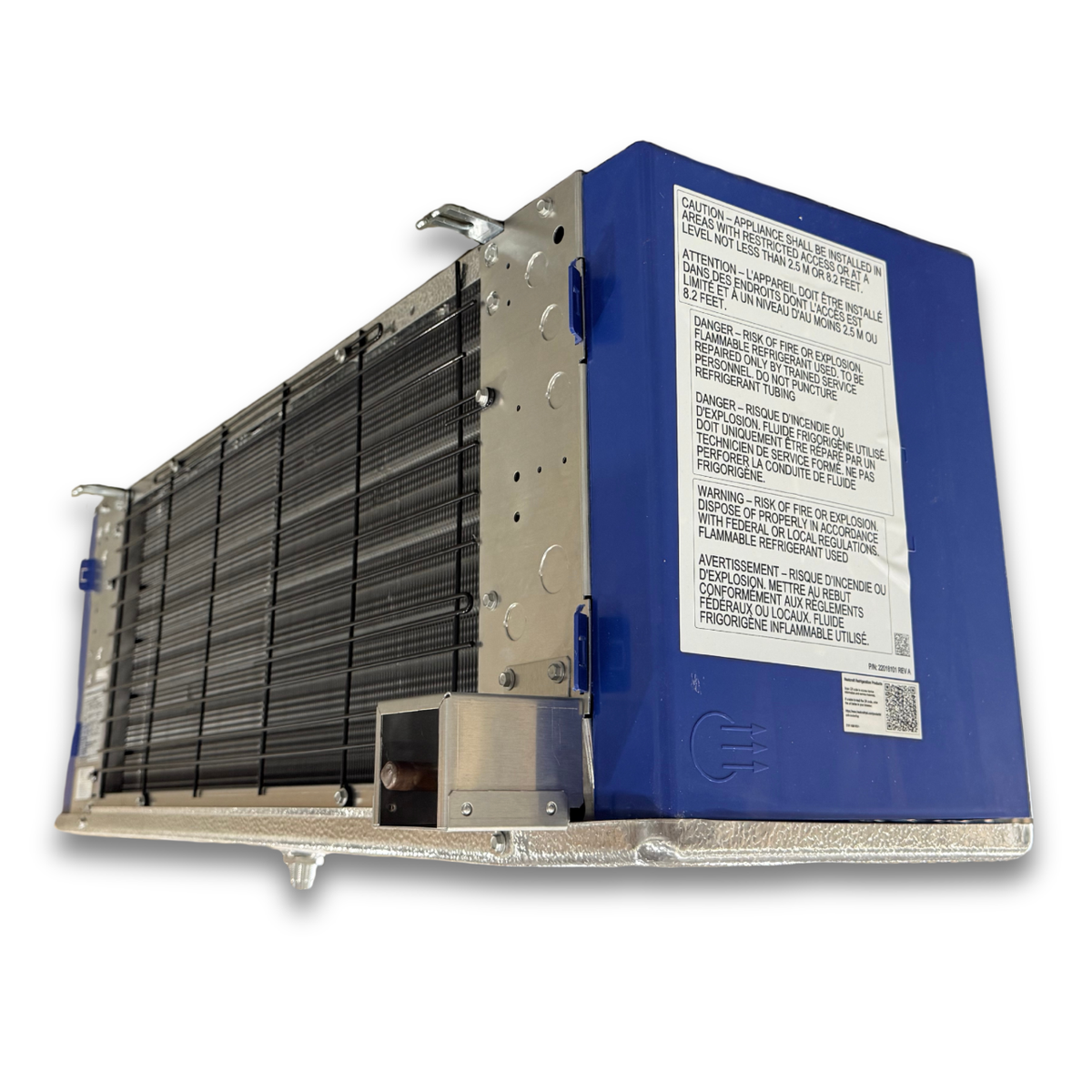

  • New 1.5 HP Medium Temp System, 1 phase 208-230 volt — supplier gallery view 7; Blue/gray evaporator back view.
1 7

Chandler

New 1.5 HP Medium Temp System, 1 phase 208-230 volt

New 1.5 HP Medium Temp System, 1 phase 208-230 volt

R 91,837.00 ZAR
R 91,837.00 ZAR
Sale Sold out
Taxes included.

New 1.5 HP Medium Temp System, 1 phase 208-230 volt. A matched refrigeration equipment package for commercial cold-storage applications.

Phase - Voltage 1 Phase 208-230 Volt
Item Condition New
BTUH Capacity Condensing Unit: 13,890 BTUH @ +25° SST/+95° ambient; Evaporator: 14,500 BTUH @ 10° T.D./R-449A
Manufacturer Chandler
Model # Condensing Unit: HCH0015MBACYA000; Evaporator: HEL0115AY6AMAB0000
Dimensions (W x D x H) Condensing Unit: 29” x 40” x 20”; Evaporator Unit: 17” x 46” x 17”
Dimensions Condensing Unit: 29” x 40” x 20”; Evaporator Unit: 17” x 46” x 17”
Application / Temperature Medium Temp
Horsepower (HP) 1.5 HP
Refrigerant Class A1
Compressor / motor rating 1.5 HP
Refrigerants listed R-449A
Condensing Unit — Model HCH0015MBACYA0000
Condensing Unit — Electrical supply 208-230 V, 1 phase
Condensing Unit — Dimensions 29”D x 40”L x 20”H (approximately 736.6 D × 1016.0 L × 508.0 H mm)
Condensing Unit — Rated capacity 13,890 BTUH @ +25° SST/+95° ambient
Evaporator — Model HEL0115AY6AMAB0000
Evaporator — Electrical supply 115 V, 1 phase
Evaporator — Included equipment 2-speed EC motors
Evaporator — Dimensions 17”D x 46”L x 17”H (approximately 431.8 D × 1168.4 L × 431.8 H mm)
Evaporator — Rated capacity 14,500 BTUH @ 10° T.D./R-449A
System operating specification +35° cooler on R-449A.
Model HCH0015MBACYA0000 + HEL0115AY6AMAB0000

Room panels and installation are not included in this equipment listing. Confirm system sizing, component compatibility and operating conditions before order.

Electrical and refrigeration configuration must be confirmed for the installation site before order.

Availability and final configuration subject to confirmation.
