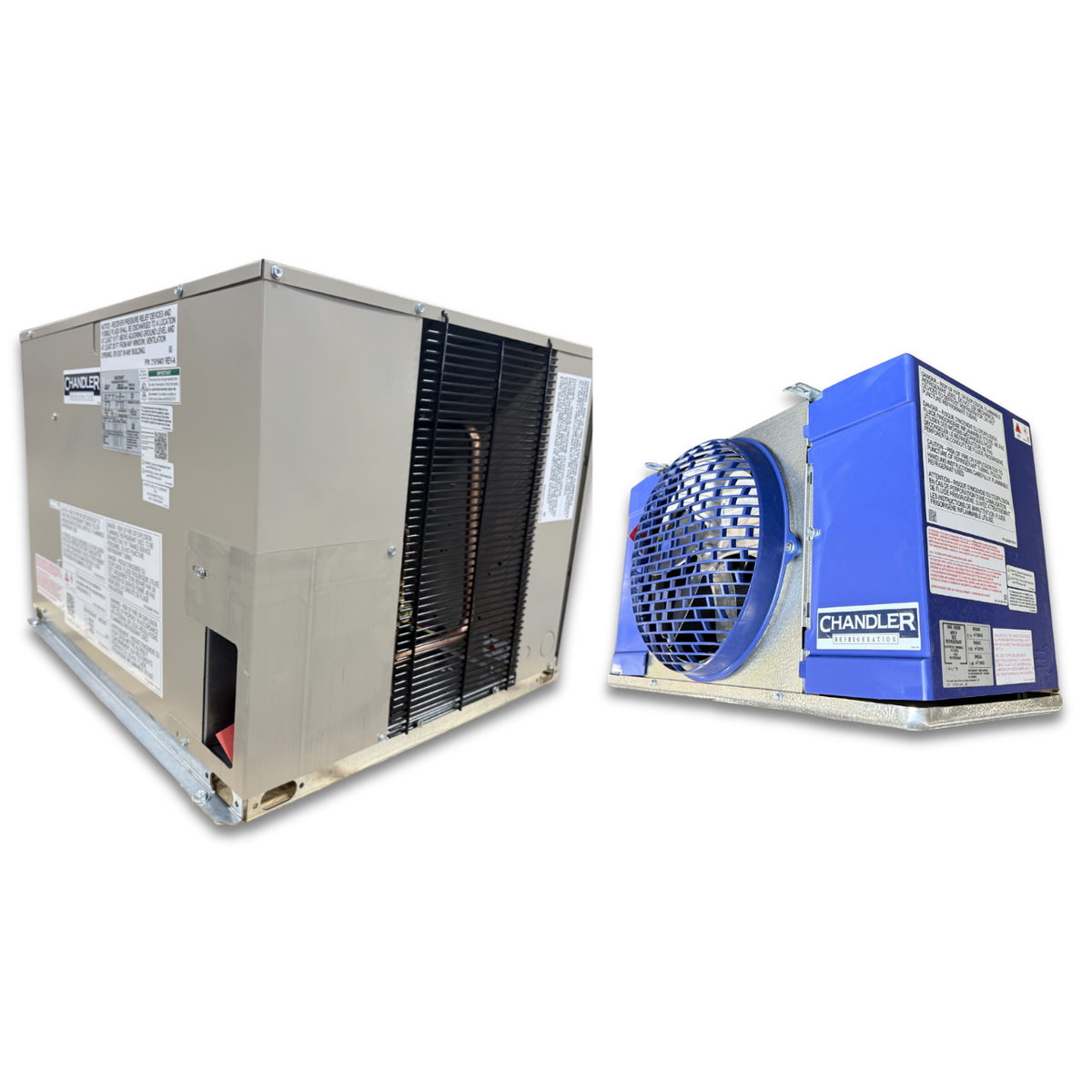

• New 0.5 HP Medium Temp System, 1 phase 208-230 volt — supplier gallery view 1; Beige condensing unit front view with a shadow and a blue and gray evaporator unit front view with one fan

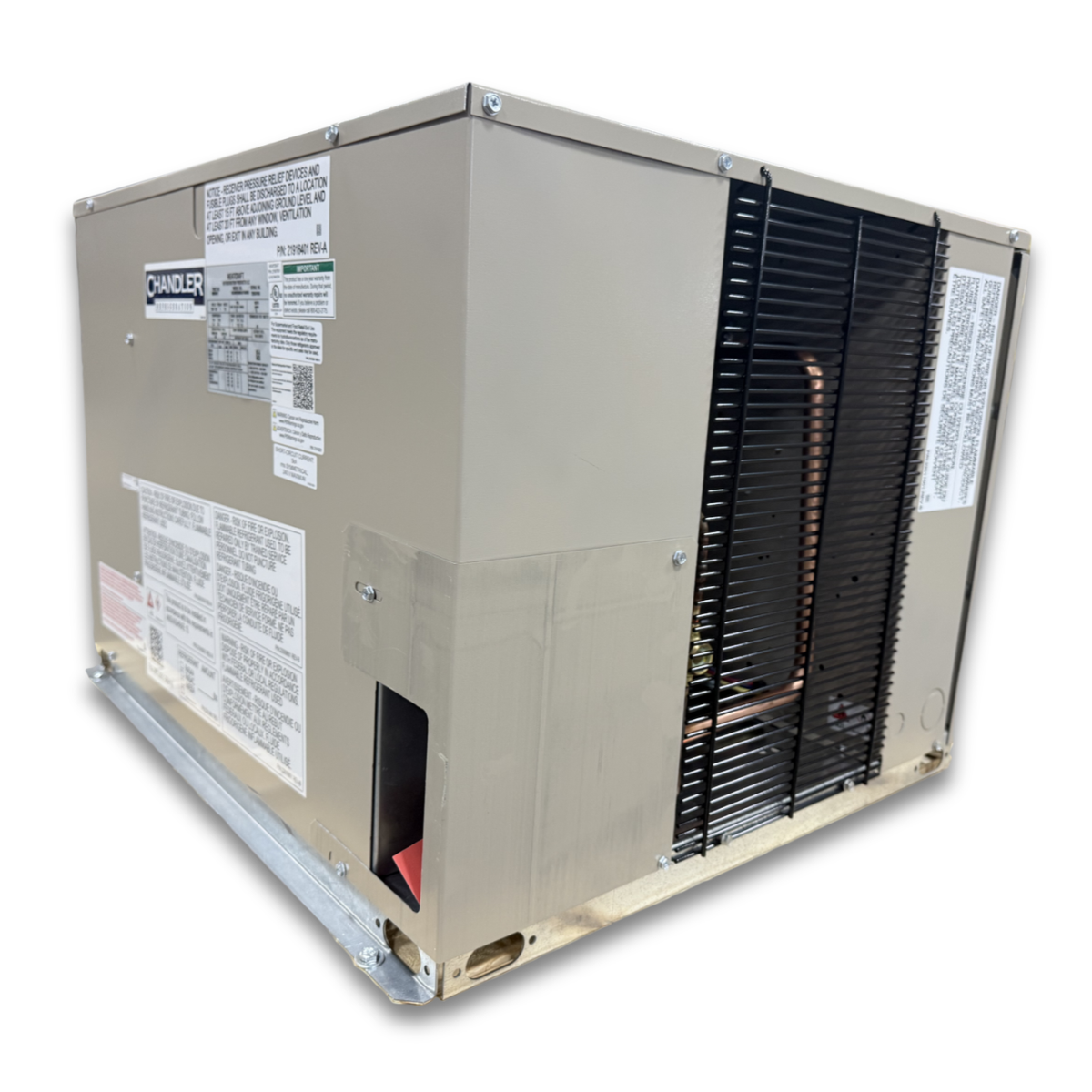

  • New 0.5 HP Medium Temp System, 1 phase 208-230 volt — supplier gallery view 2; Beige condensing unit on with side front view showing labels

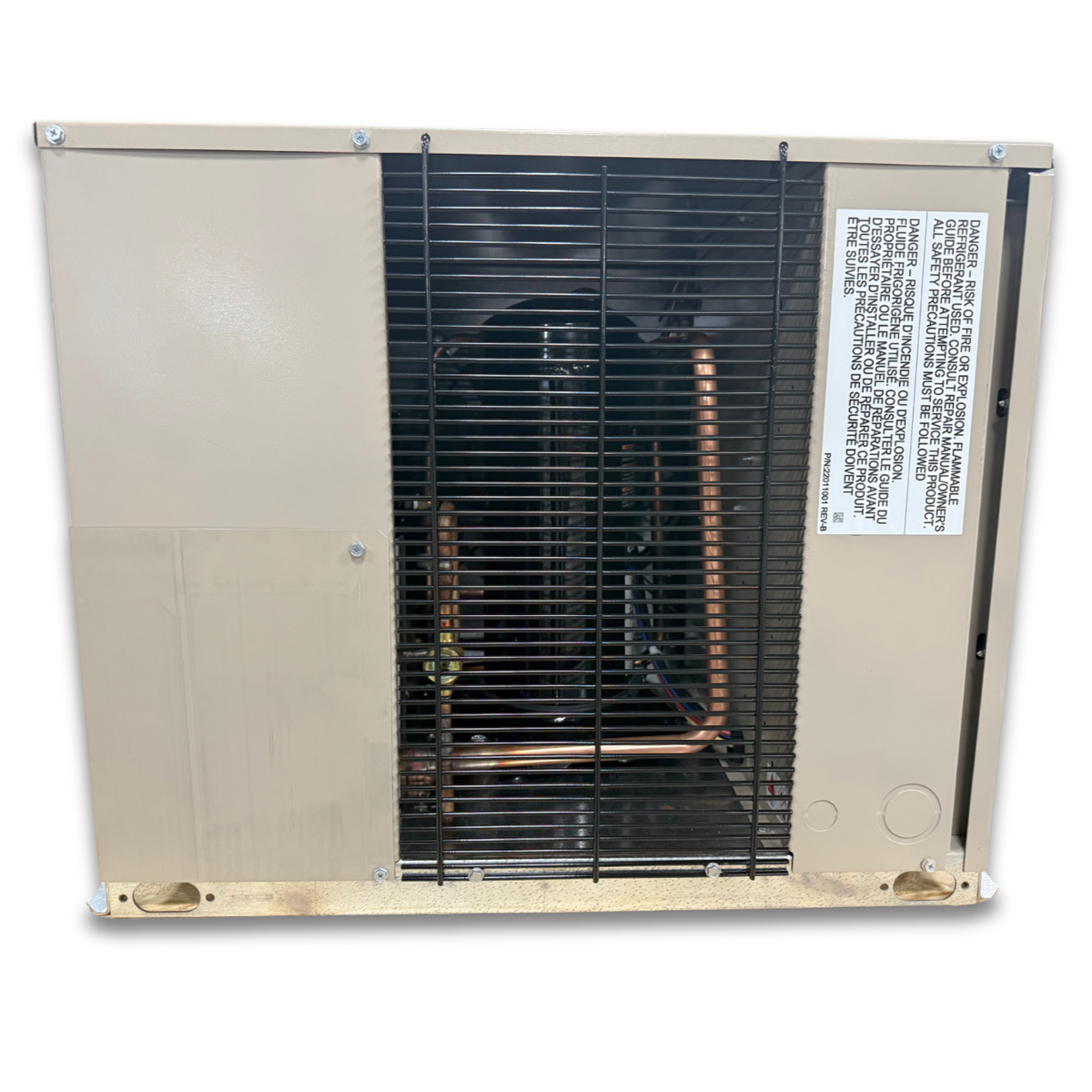

  • New 0.5 HP Medium Temp System, 1 phase 208-230 volt — supplier gallery view 3; Beige condensing unit on with front view showing the interior

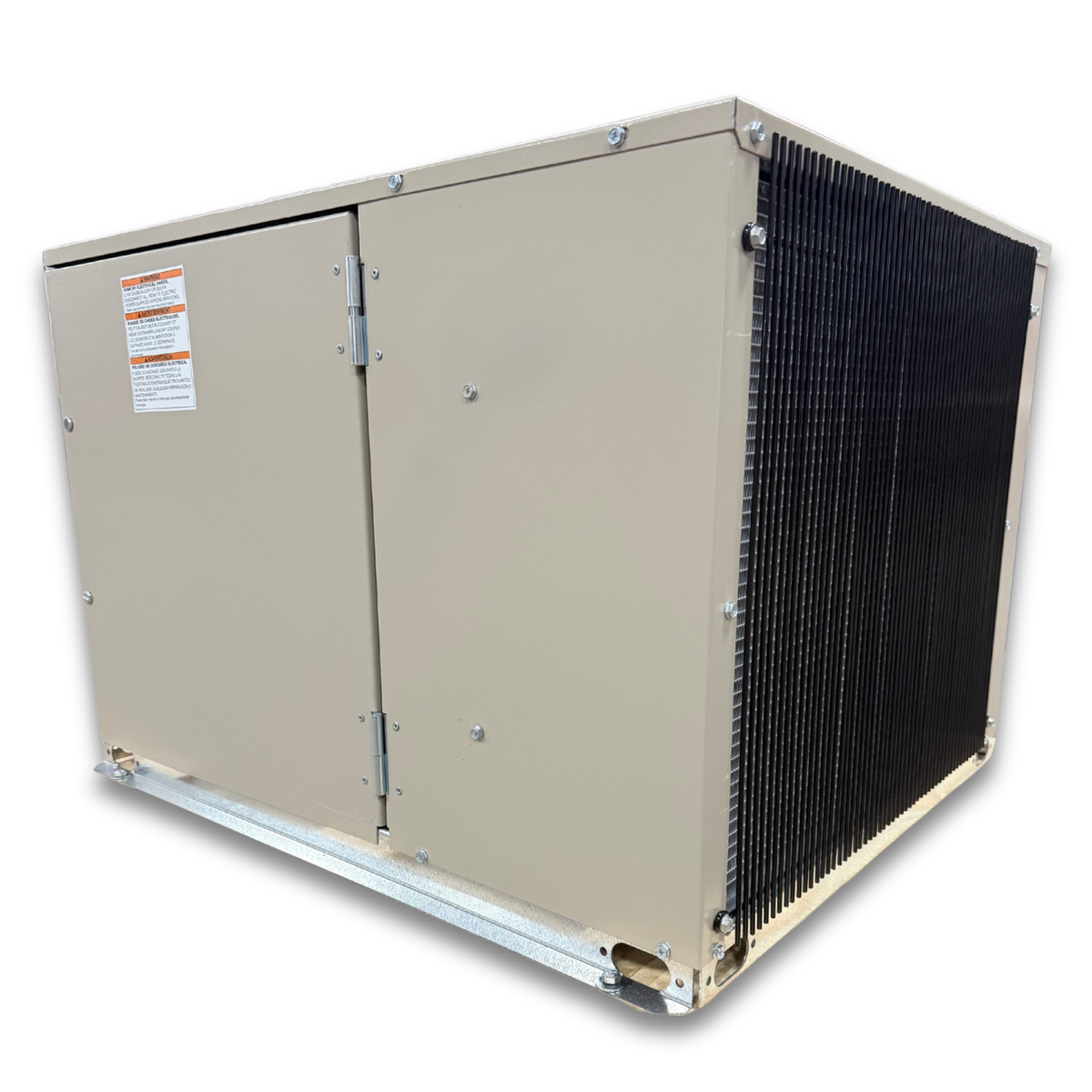

  • New 0.5 HP Medium Temp System, 1 phase 208-230 volt — supplier gallery view 4; Beige condensing unit on with side back view showing labels

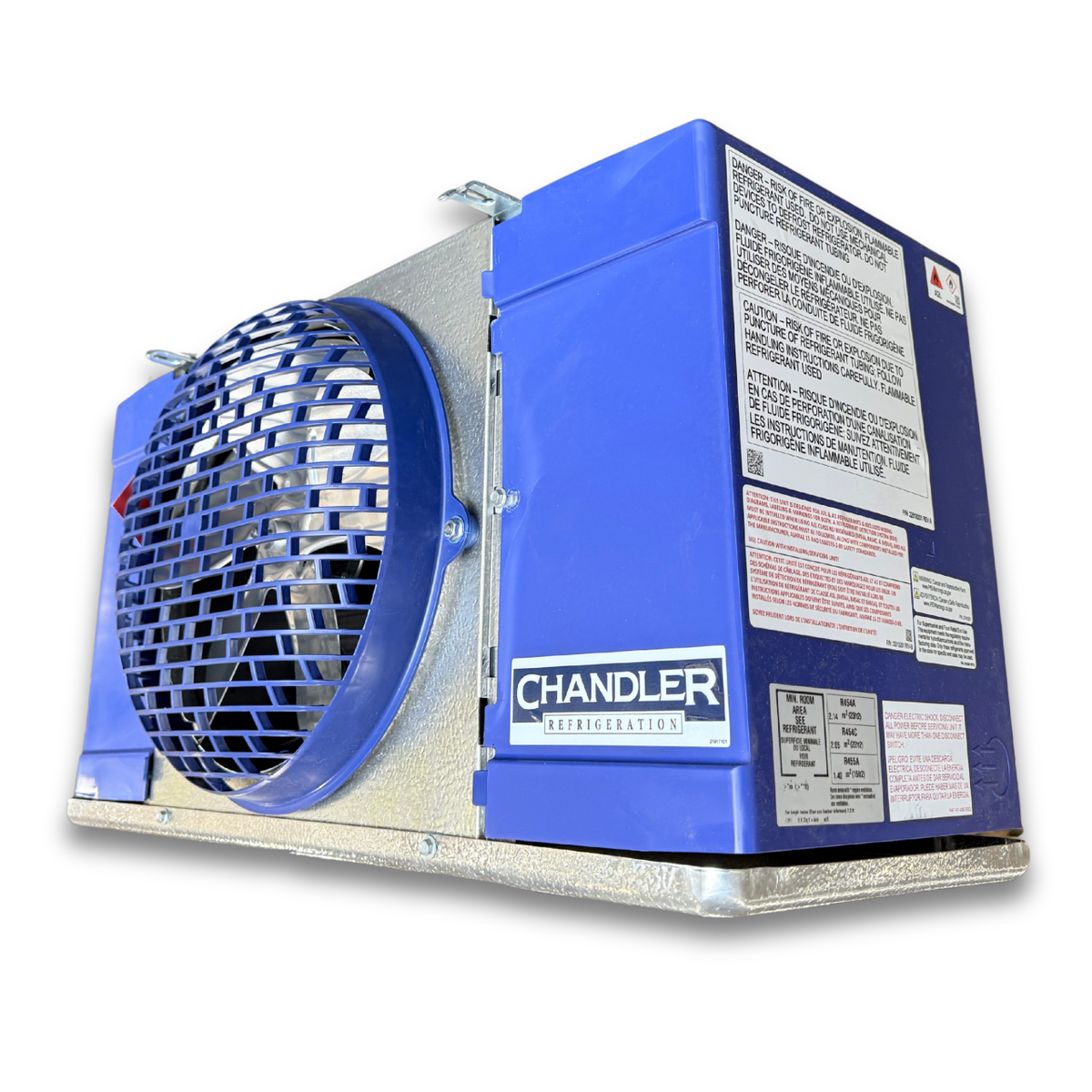

  • New 0.5 HP Medium Temp System, 1 phase 208-230 volt — supplier gallery view 5; Blue and gray evaporator unit showing the front side

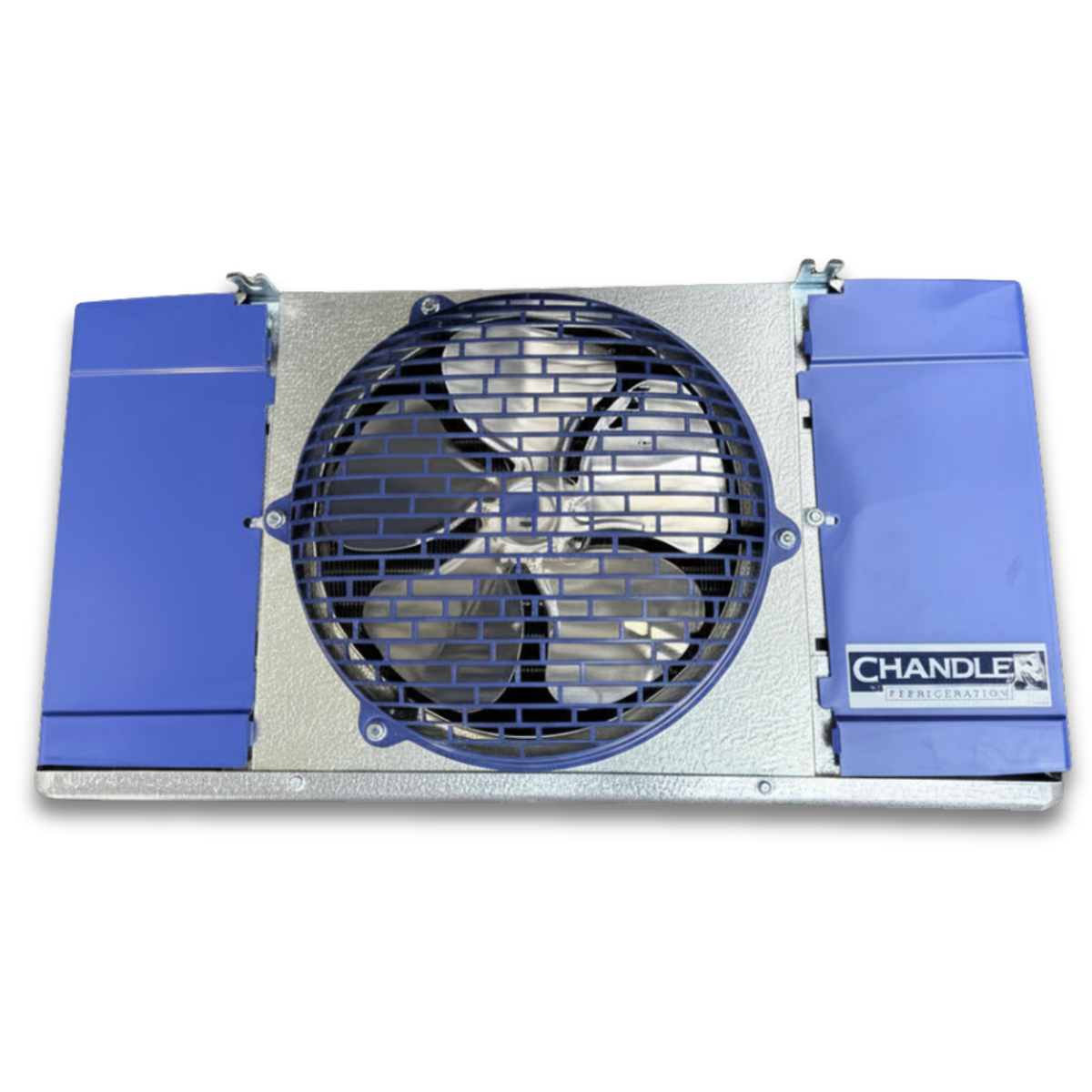

  • New 0.5 HP Medium Temp System, 1 phase 208-230 volt — supplier gallery view 6; Blue and gray evaporator unit with a side front view

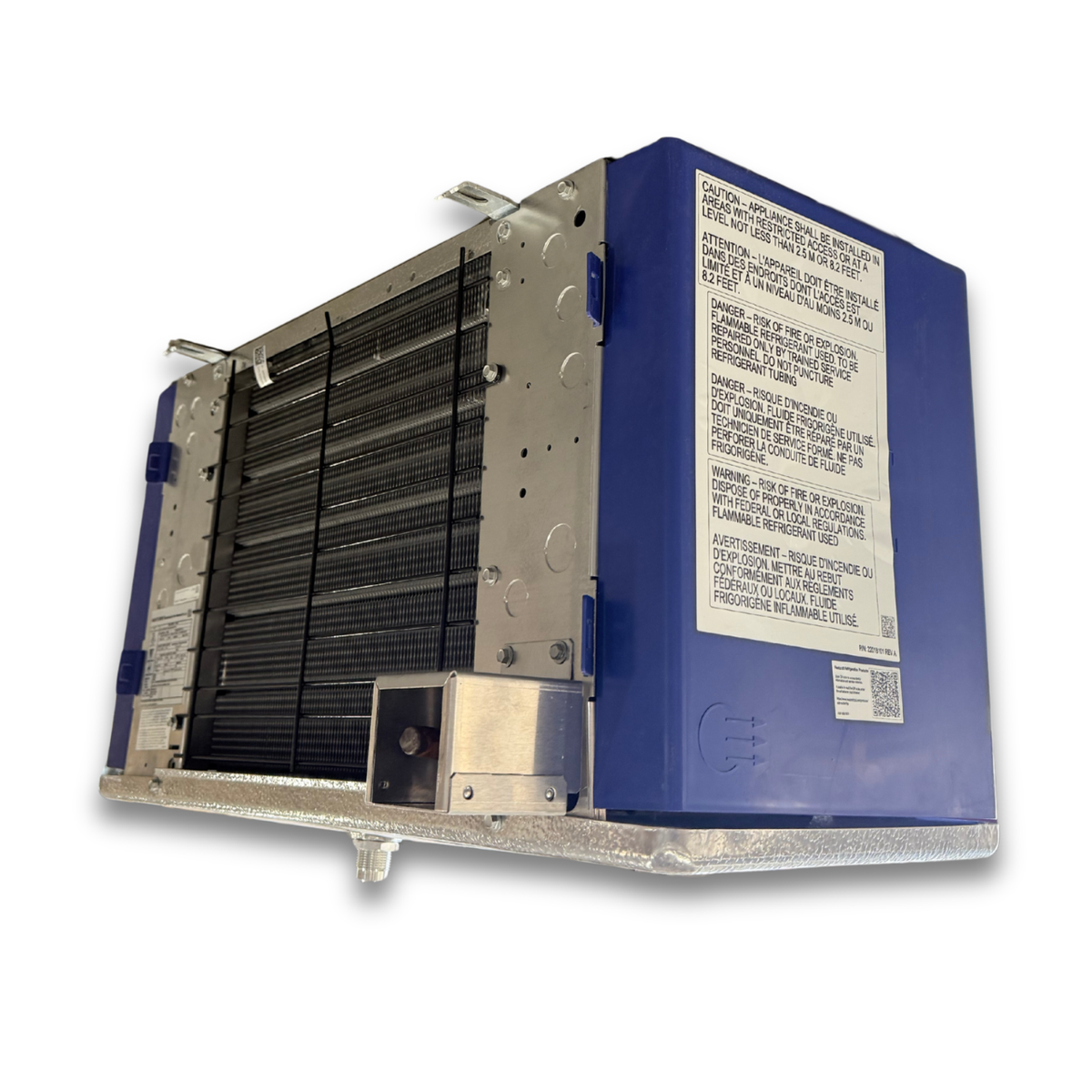

  • New 0.5 HP Medium Temp System, 1 phase 208-230 volt — supplier gallery view 7; Blue and gray evaporator with a back view
1 7

Chandler

New 0.5 HP Medium Temp System, 1 phase 208-230 volt

New 0.5 HP Medium Temp System, 1 phase 208-230 volt

R 64,052.00 ZAR
R 64,052.00 ZAR
Sale Sold out
Taxes included.

New 0.5 HP Medium Temp System, 1 phase 208-230 volt. A matched refrigeration equipment package for commercial cold-storage applications.

Condensing Unit Description New 0.5 HP Chandler outdoor, air-cooled condensing unit
Condensing Unit Model # HCH0005MBACYA0000
Condensing Unit Phase - Voltage 1 Phase 208-230 Volt
Condensing Unit Dimensions 29”D x 25”L x 20”H (approximately 736.6 D × 635.0 L × 508.0 H mm)
Condensing Unit BTUH Capacity 7,020 BTUH @ +25° SST/+95° ambient
Evaporator Description New Chandler low profile evaporator.
Evaporator Model # HEL0060AY6AMAB0000
Evaporator Phase - Voltage 115 Volt, 1 Phase
Evaporator Dimensions 16”D x 30”L x 18”H (approximately 406.4 D × 762.0 L × 457.2 H mm)
Evaporator BTUH Capacity 7,800 BTUH @ 10° T.D./R-449A
Application / Temperature Medium Temp
Horsepower (HP) 0.5 HP
Refrigerant Class A1
Phase - Voltage 1 Phase 208-230 Volt
Compressor / motor rating 0.5 HP
Refrigerants listed R-449A
Condensing Unit — Model HCH0005MBACYA0000
Condensing Unit — Electrical supply 208-230 V, 1 phase
Condensing Unit — Dimensions 29”D x 25”L x 20”H (approximately 736.6 D × 635.0 L × 508.0 H mm)
Condensing Unit — Rated capacity 7,020 BTUH @ +25° SST/+95° ambient
Evaporator — Model HEL0060AY6AMAB0000
Evaporator — Electrical supply 115 V, 1 phase
Evaporator — Included equipment 2-speed EC motors
Evaporator — Dimensions 16”D x 30”L x 18”H (approximately 406.4 D × 762.0 L × 457.2 H mm)
Evaporator — Rated capacity 7,800 BTUH @ 10° T.D./R-449A
System operating specification +35° cooler on R-449A.
Manufacturer Chandler
Model HCH0005MBACYA0000 + HEL0060AY6AMAB0000

Room panels and installation are not included in this equipment listing. Confirm system sizing, component compatibility and operating conditions before order.

Electrical and refrigeration configuration must be confirmed for the installation site before order.

Availability and final configuration subject to confirmation.
