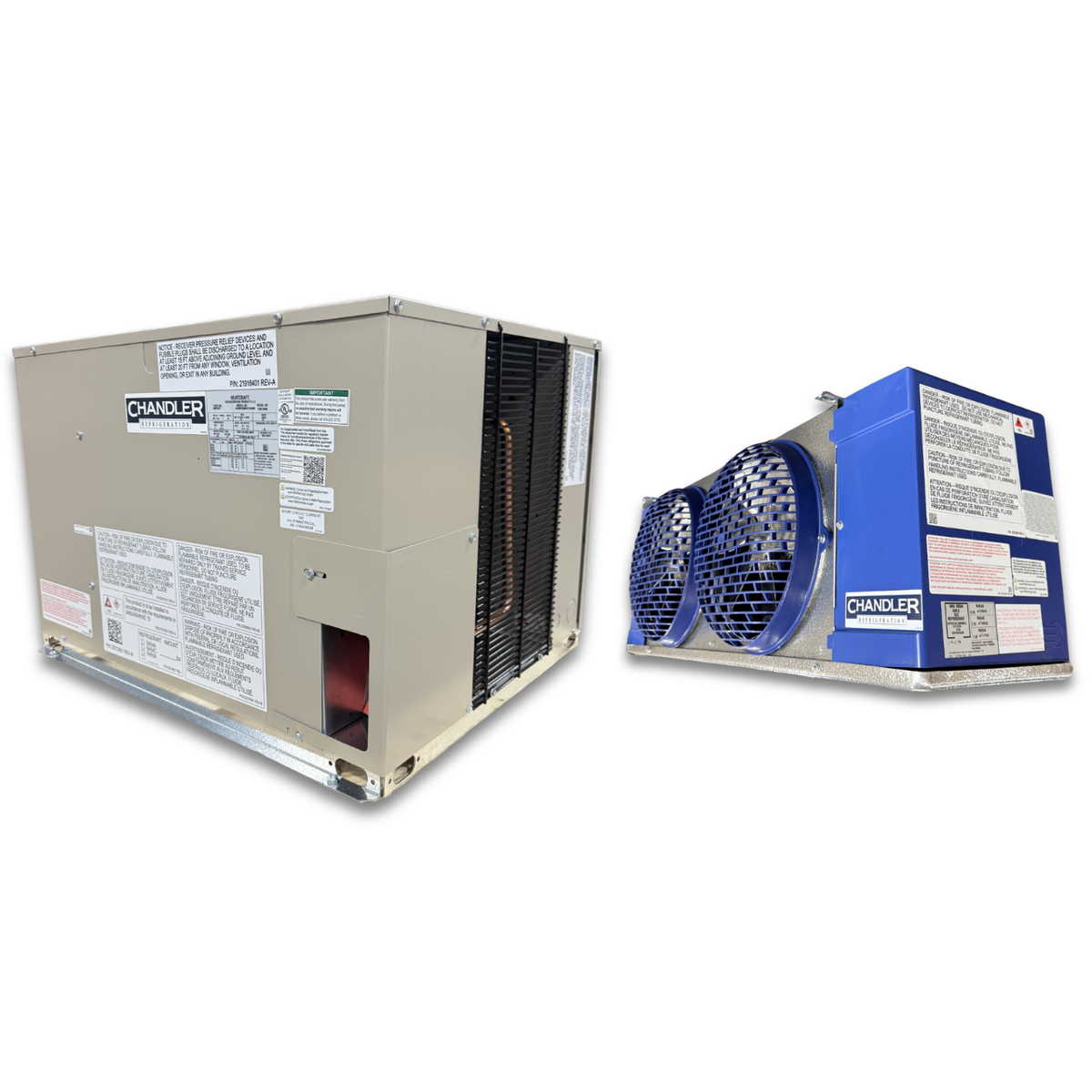

• New 1 HP Medium Temp System, 1 phase 208-230 volt — supplier gallery view 1; Beige condensing unit front view with a shadow and a blue and gray evaporator unit front view with two fans

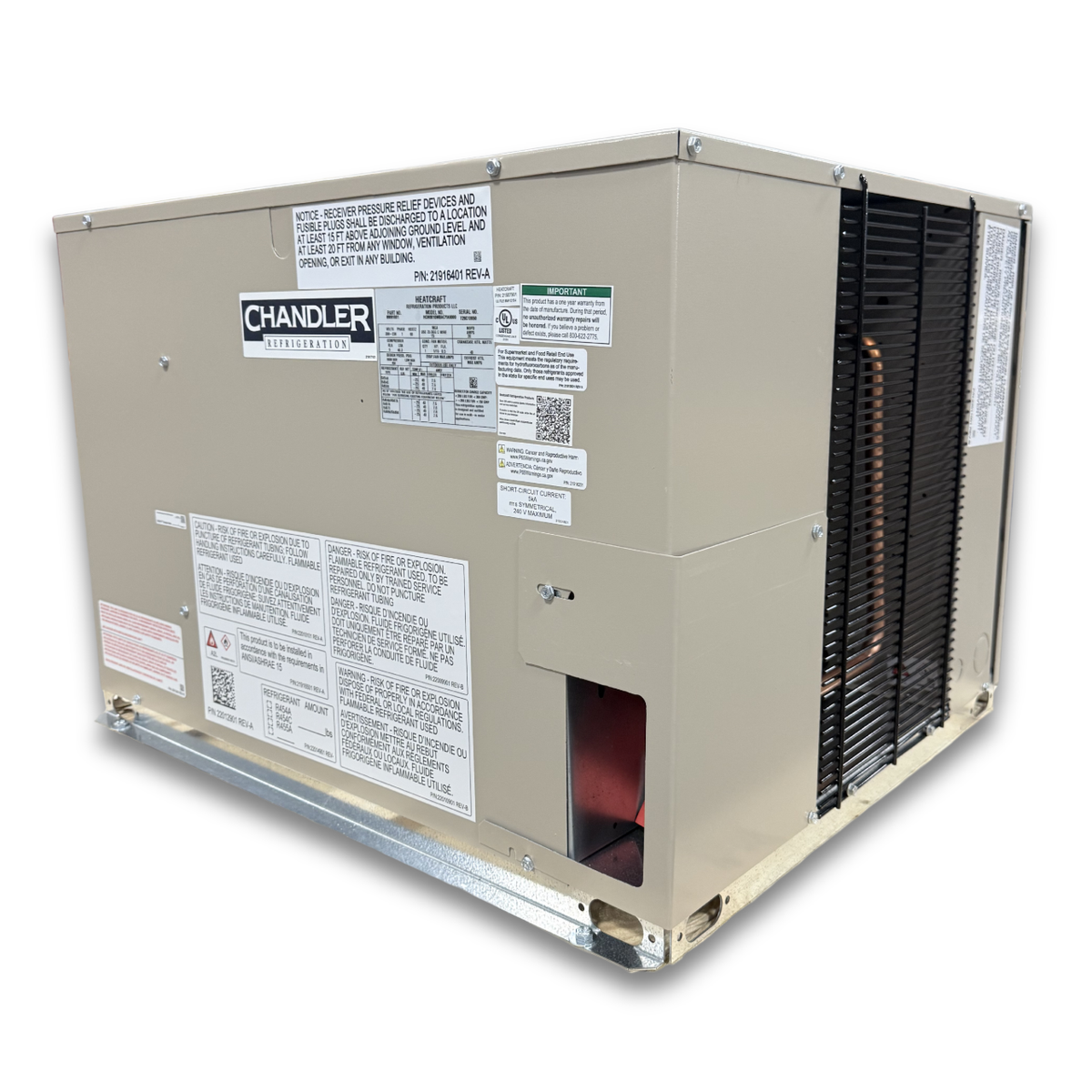

  • New 1 HP Medium Temp System, 1 phase 208-230 volt — supplier gallery view 2; Beige condensing unit with front side view showing the interior

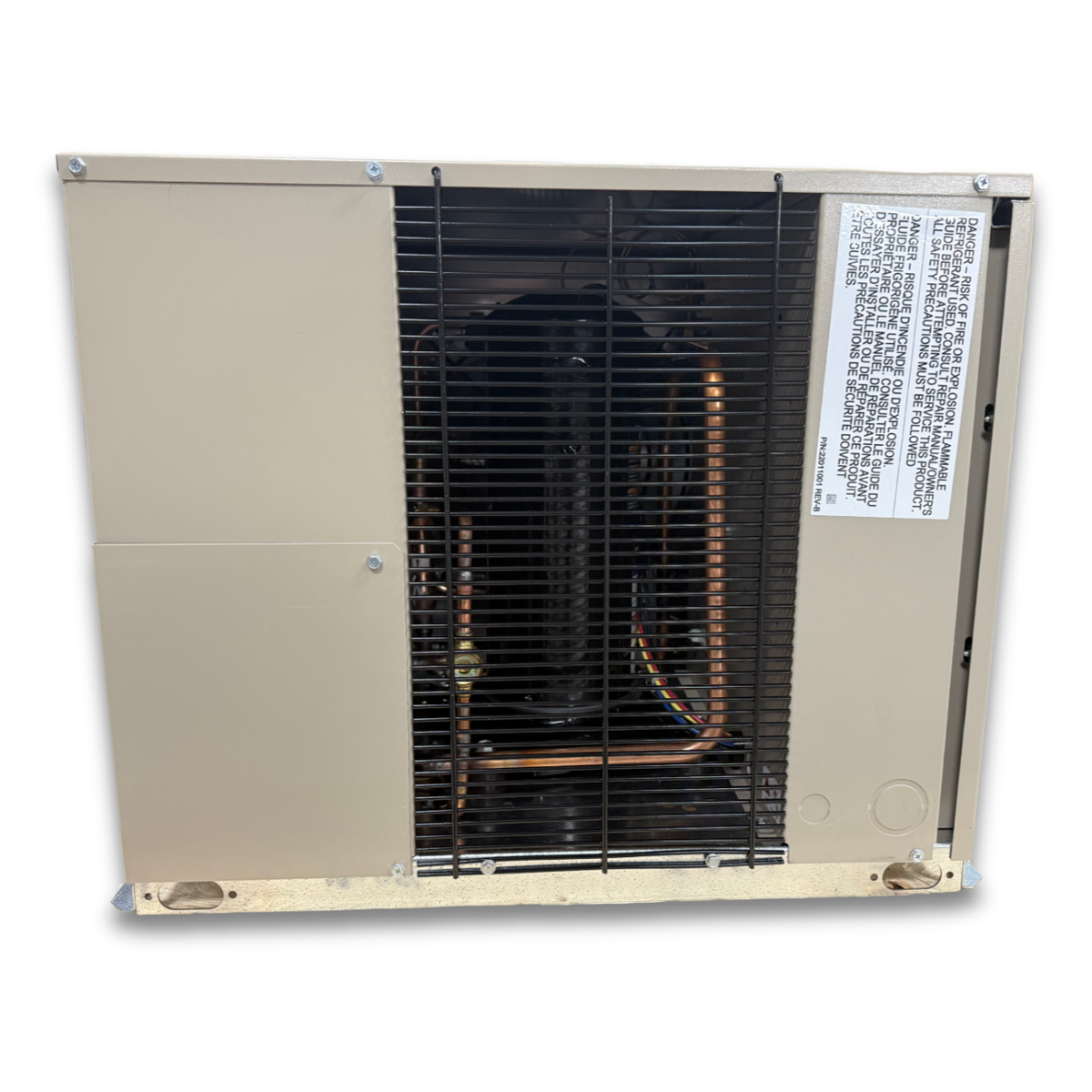

  • New 1 HP Medium Temp System, 1 phase 208-230 volt — supplier gallery view 3; Beige condensing unit with front view showing the interior

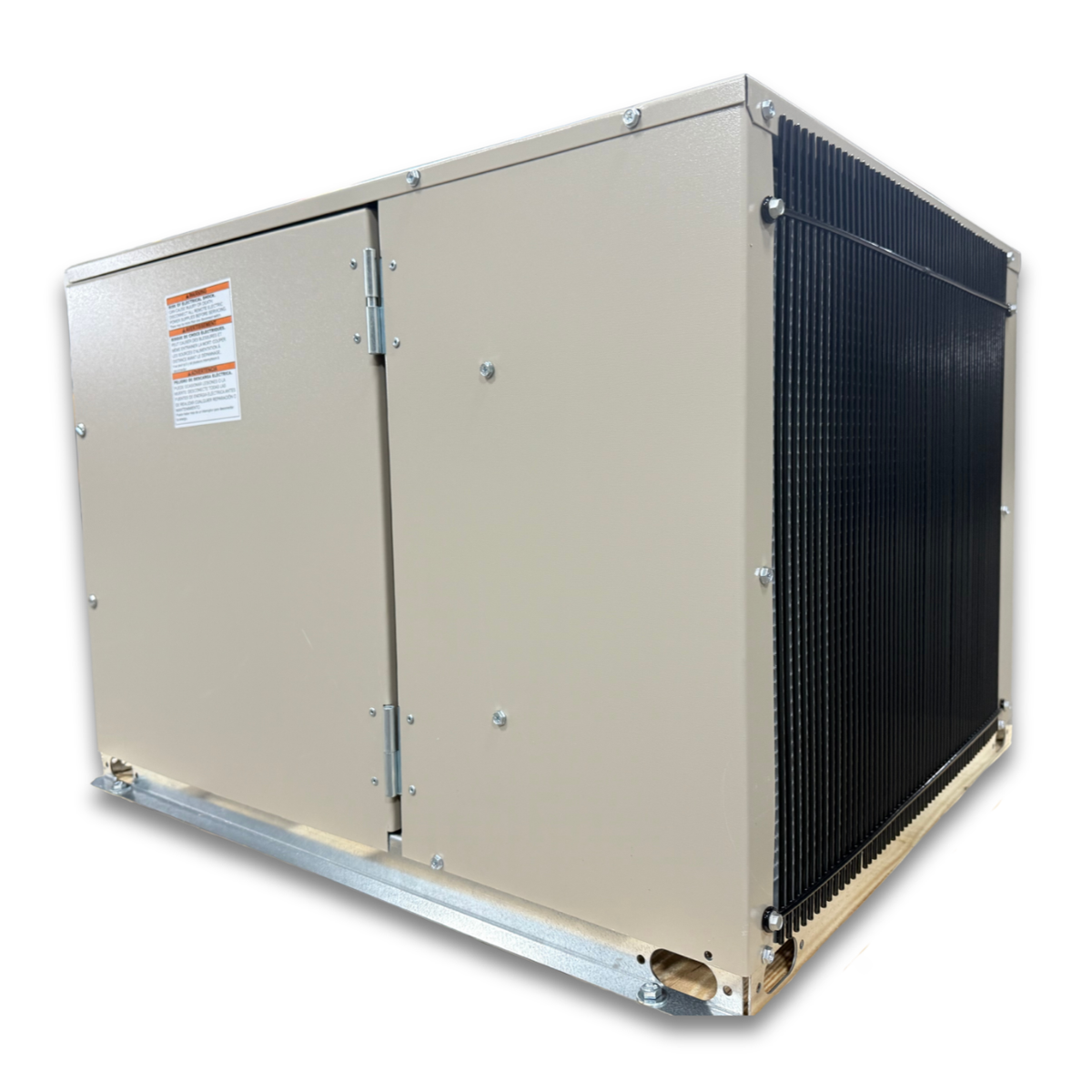

  • New 1 HP Medium Temp System, 1 phase 208-230 volt — supplier gallery view 4; Beige condensing unit on pallet with side back view.

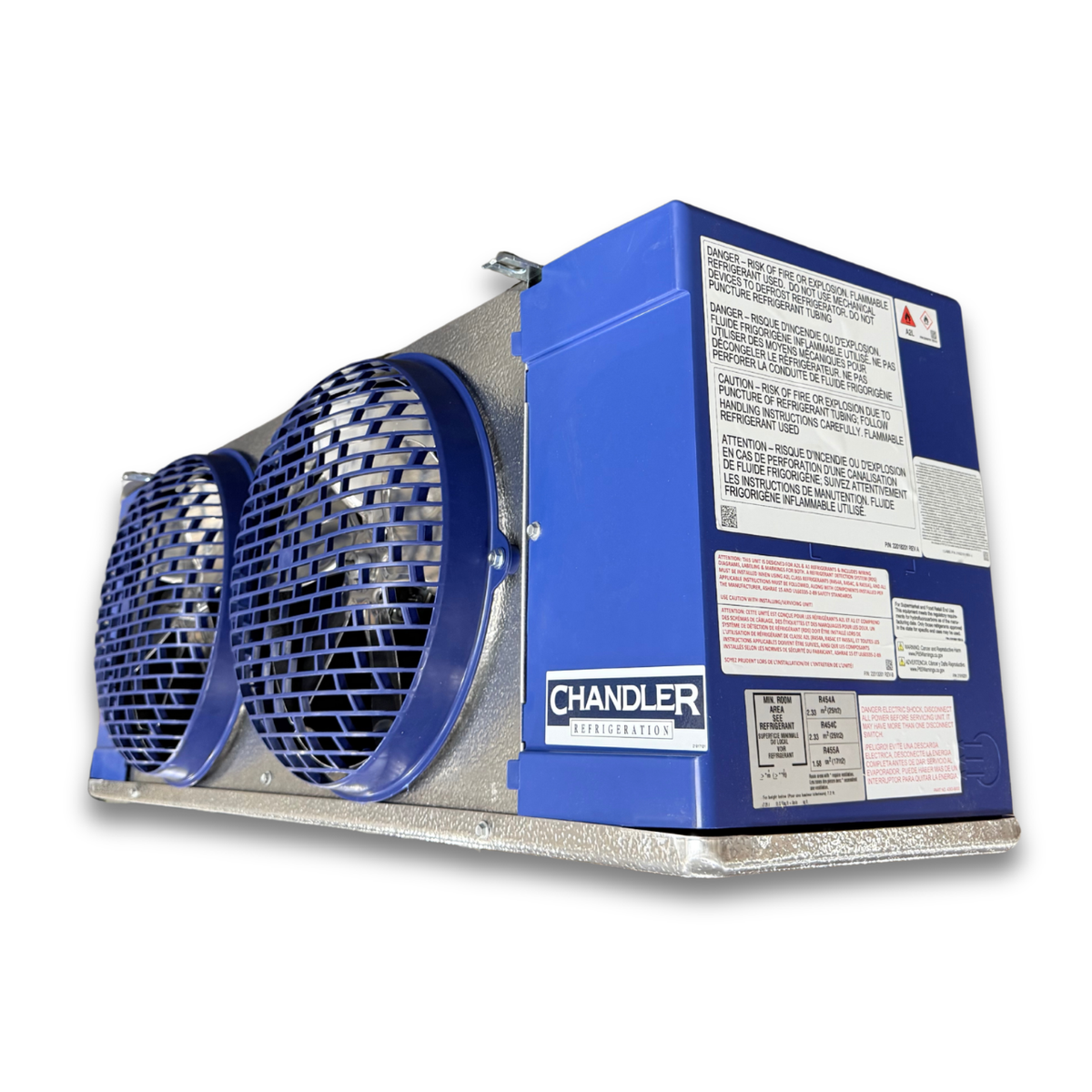

  • New 1 HP Medium Temp System, 1 phase 208-230 volt — supplier gallery view 5; Blue and gray evaporator unit showing the front side

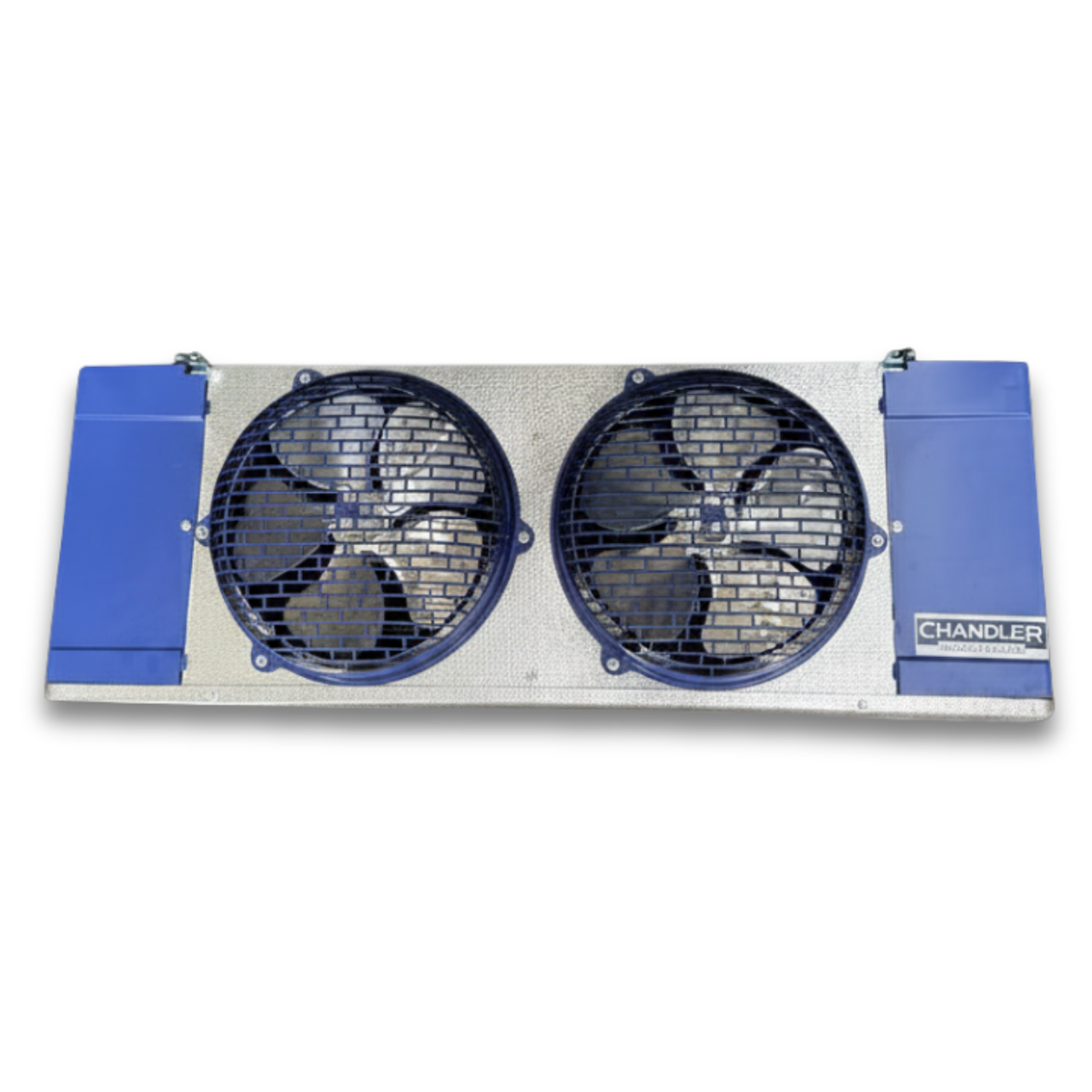

  • New 1 HP Medium Temp System, 1 phase 208-230 volt — supplier gallery view 6; Blue and gray evaporator unit showing the front

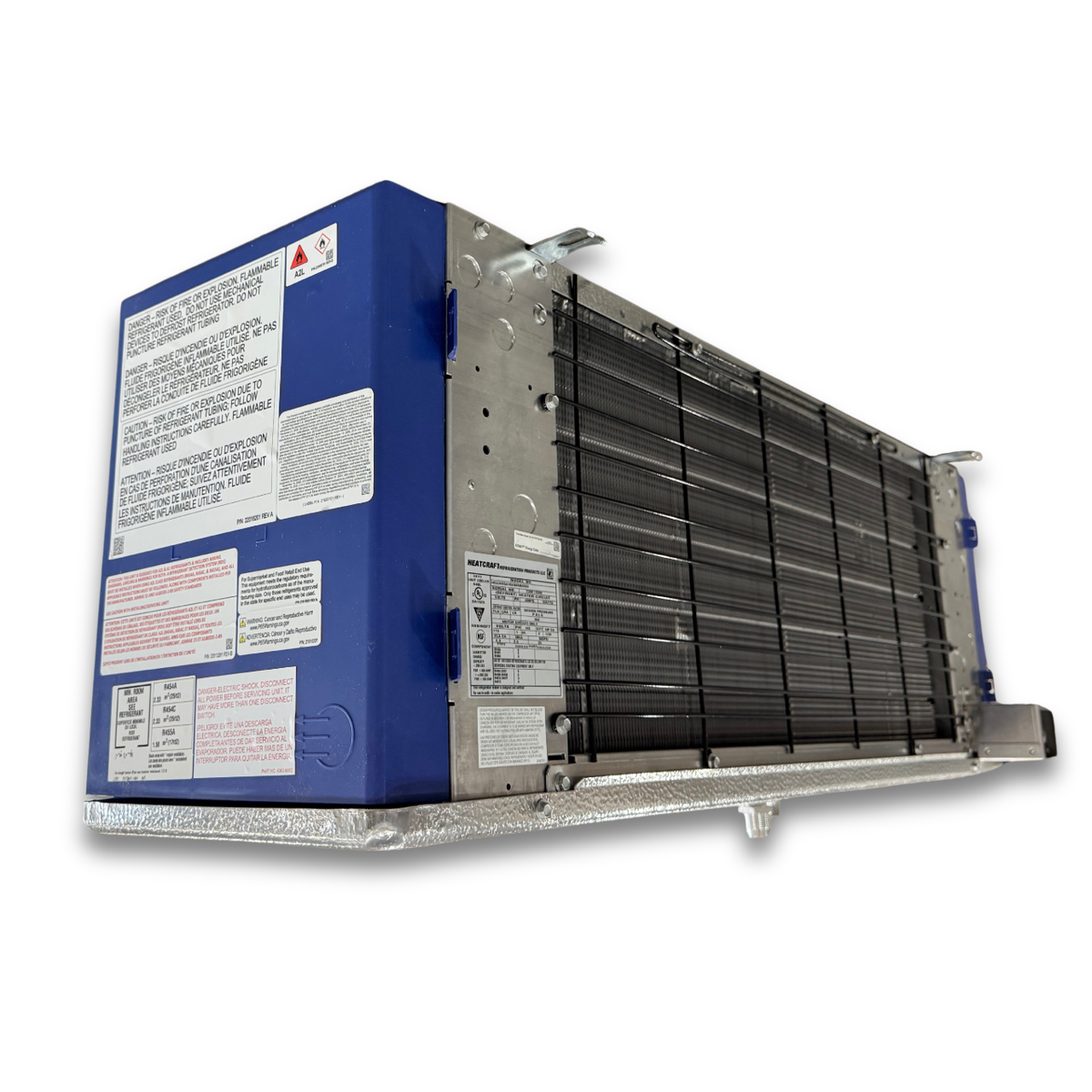

  • New 1 HP Medium Temp System, 1 phase 208-230 volt — supplier gallery view 7; Blue and gray evaporator unit showing the back
1 7

Chandler

New 1 HP Medium Temp System, 1 phase 208-230 volt

New 1 HP Medium Temp System, 1 phase 208-230 volt

R 81,491.00 ZAR
R 81,491.00 ZAR
Sale Sold out
Taxes included.

New 1 HP Medium Temp System, 1 phase 208-230 volt. A matched refrigeration equipment package for commercial cold-storage applications.

Phase - Voltage 1 Phase 208-230 Volt
Item Condition New
BTUH Capacity Condensing Unit: 9,700 BTUH @ +25° SST/+95° ambient; Evaporator: 10,000 BTUH @ 10° T.D./R-449A
Manufacturer Chandler
Model # Condensing Unit: HCH0010MBACYA000; Evaporator: HEL0095AY6AMAB0000
Dimensions (W x D x H) Condensing Unit: 29” x 25” x 20”; Evaporator: 17" x 46” x 17”
Dimensions Condensing Unit: 29” x 25” x 20”; Evaporator: 17" x 46” x 17”
Application / Temperature Medium Temp
Horsepower (HP) 1 HP
Refrigerant Class A1
Compressor / motor rating 1 HP
Refrigerants listed R-449A
Condensing Unit — Model HCH0010MBACYA0000
Condensing Unit — Electrical supply 208-230 V, 1 phase
Condensing Unit — Dimensions 29”D x 25”L x 20”H (approximately 736.6 D × 635.0 L × 508.0 H mm)
Condensing Unit — Rated capacity 9,700 BTUH @ +25° SST/+95° ambient
Evaporator — Model HEL0095AY6AMAB0000
Evaporator — Electrical supply 115 V, 1 phase
Evaporator — Included equipment 2-speed EC motors
Evaporator — Dimensions 17”D x 46”L x 17”H (approximately 431.8 D × 1168.4 L × 431.8 H mm)
Evaporator — Rated capacity 10,000 BTUH @ 10° T.D./R-449A
System operating specification +35° cooler on R-449A.
Model HCH0010MBACYA0000 + HEL0095AY6AMAB0000

Room panels and installation are not included in this equipment listing. Confirm system sizing, component compatibility and operating conditions before order.

Electrical and refrigeration configuration must be confirmed for the installation site before order.

Availability and final configuration subject to confirmation.
