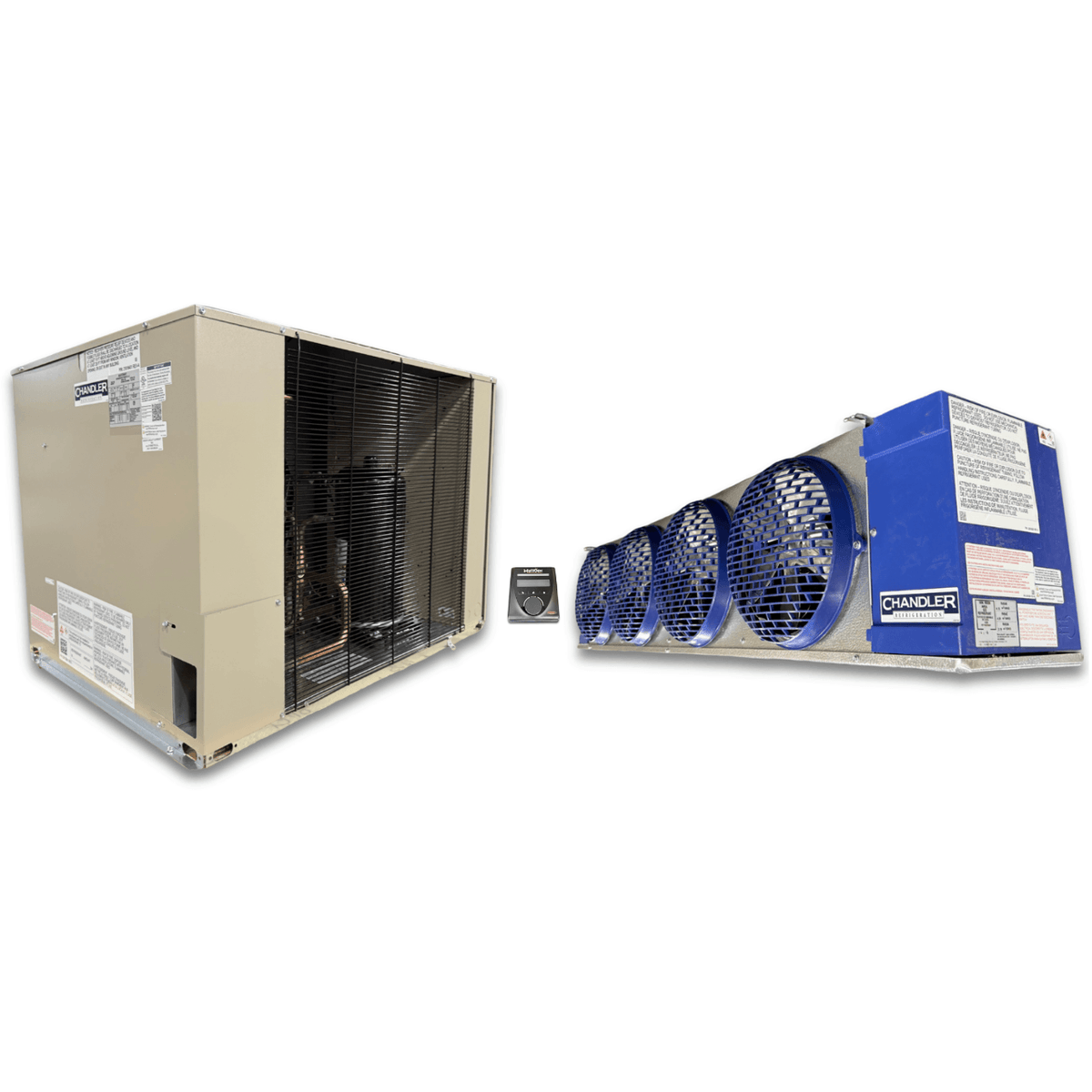

New 5.5 HP R-455A Low Temp System, 1 phase 208-230 volt

New 5.5 HP R-455A Low Temp System, 1 phase 208-230 volt

R 181,353.00 ZAR
R 181,353.00 ZAR
Sale Sold out
Taxes included.

New 5.5 HP R-455A Low Temp System, 1 phase 208-230 volt. A matched refrigeration equipment package for commercial cold-storage applications.

Item Condition New
Application / Temperature Low Temp
Horsepower (HP) 5.5 HP
Refrigerant Class A1 / A2L
Phase - Voltage 1 Phase 208-230 Volt
Compressor / motor rating 5.5 HP
Refrigerants listed R-455A

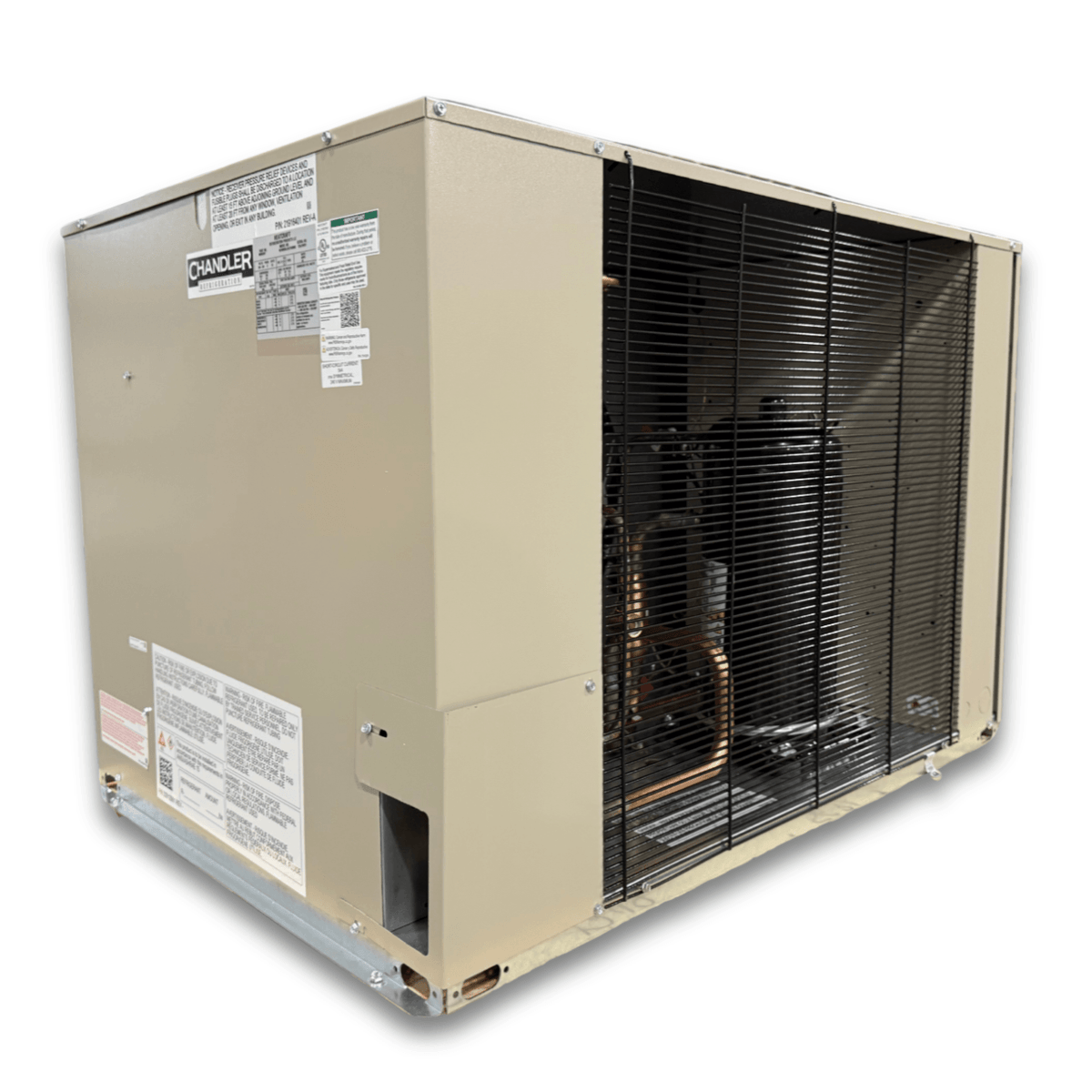

Condensing Unit — Model HCH0055LBACYA0000
Condensing Unit — Electrical supply 208-230 V, 1 phase
Condensing Unit — Dimensions 31”D x 44”L x 30”H (approximately 787.4 D × 1117.6 L × 762.0 H mm)
Condensing Unit — Rated capacity 19,440 BTUH @ -15° SST/+95° ambient

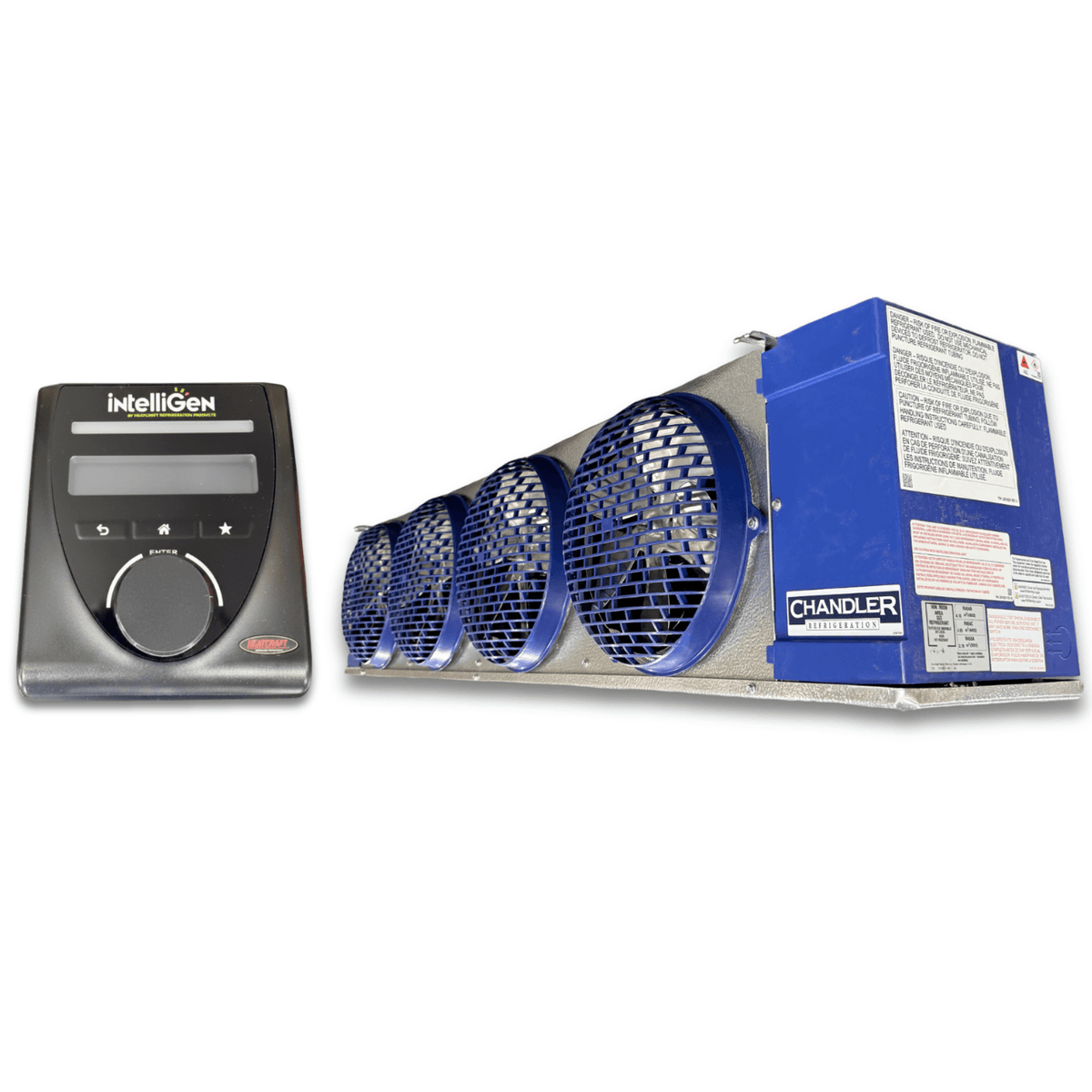

Evaporator — Model HEL0170BY6EMAG0210
Evaporator — Electrical supply 208-230 V, 1 phase
Evaporator — Included equipment 2-speed EC motors, RDS (required for A2L), and Intelligen Controller
Evaporator — Dimensions 16”D x 78”L x 18”H (approximately 406.4 D × 1981.2 L × 457.2 H mm)
Evaporator — Rated capacity 17,340 BTUH @ 10° T.D./R-455A
System operating specification -5° freezer on R-455A.
Manufacturer Chandler
Model HCH0055LBACYA0000 + HEL0170BY6EMAG0210

Room panels and installation are not included in this equipment listing. Confirm system sizing, component compatibility and operating conditions before order.

Electrical and refrigeration configuration must be confirmed for the installation site before order.

Availability and final configuration subject to confirmation.
