New 2.5 HP R-455A Medium Temp System, 1 phase 208-230 volt
New 2.5 HP R-455A Medium Temp System, 1 phase 208-230 volt
Regular price
R 125,783.00 ZAR
Regular price
Sale price
R 125,783.00 ZAR
Taxes included.
Quantity
Couldn't load pickup availability

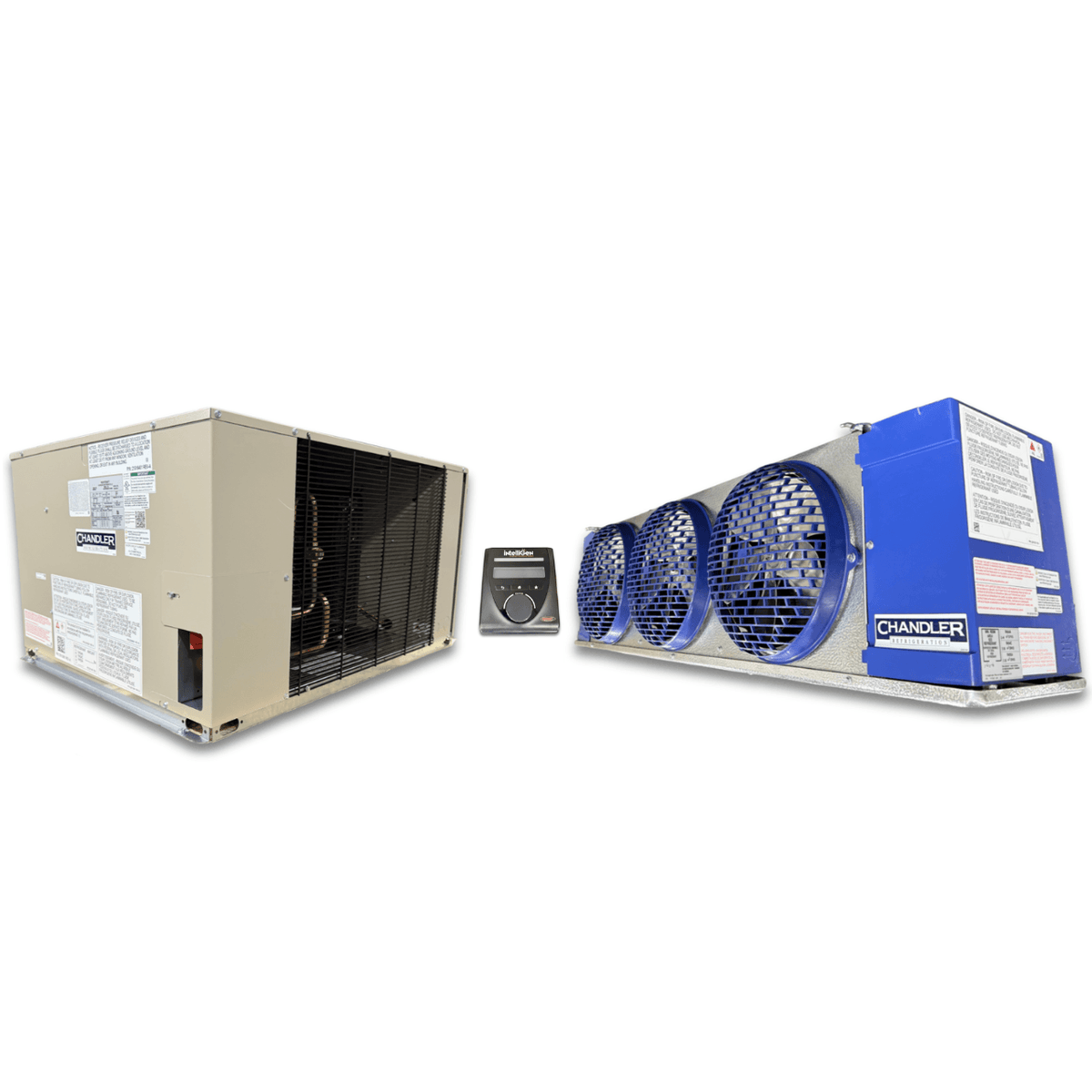

New 2.5 HP R-455A Medium Temp System, 1 phase 208-230 volt. A matched refrigeration equipment package for commercial cold-storage applications.
| Item Condition | New |
|---|---|
| Application / Temperature | Medium Temp |
| Horsepower (HP) | 2.5 HP |
| Refrigerant Class | A1 / A2L |
| Phase - Voltage | 1 Phase 208-230 Volt |
| Compressor / motor rating | 2.5 HP |
| Refrigerants listed | R-455A |

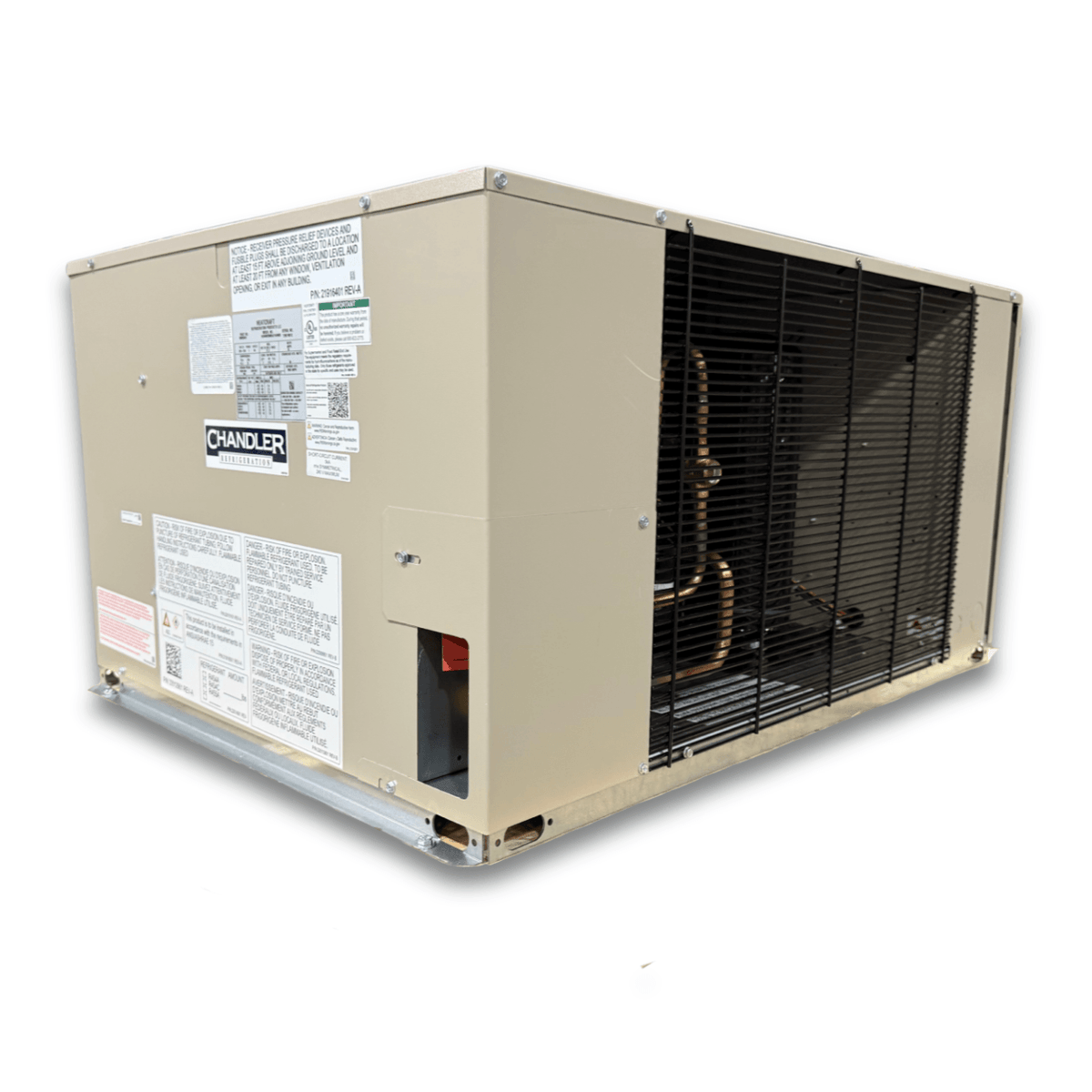

| Condensing Unit — Model | HCH0025MBACYA0000 |
| Condensing Unit — Electrical supply | 208-230 V, 1 phase |
| Condensing Unit — Dimensions | 29”D x 40”L x 20”H (approximately 736.6 D × 1016.0 L × 508.0 H mm) |
| Condensing Unit — Rated capacity | 19,070 BTUH @ +25° SST/+95° ambient |

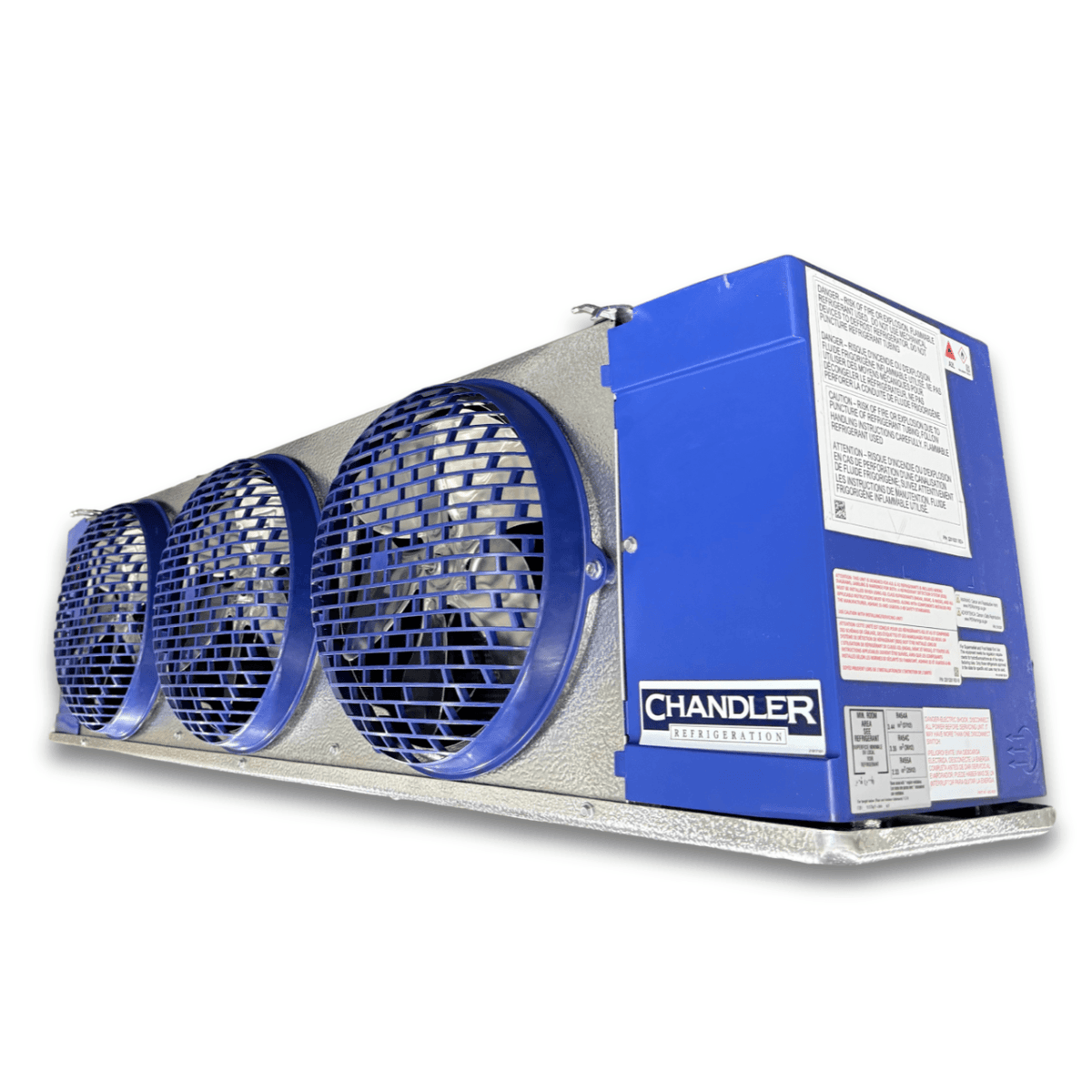

| Evaporator — Model | HEL0155AY6AMAG0210 |
| Evaporator — Electrical supply | 115 V, 1 phase |
| Evaporator — Included equipment | 2-speed EC motors, RDS (required for A2L), and Intelligen Controller |
| Evaporator — Dimensions | 16”D x 62”L x 18”H (approximately 406.4 D × 1574.8 L × 457.2 H mm) |
| Evaporator — Rated capacity | 18,100 BTUH @ 10° T.D./R-455A |
| System operating specification | +35° cooler on R-455A. |
| Manufacturer | Chandler |
| Model | HCH0025MBACYA0000 + HEL0155AY6AMAG0210 |
Room panels and installation are not included in this equipment listing. Confirm system sizing, component compatibility and operating conditions before order.
Electrical and refrigeration configuration must be confirmed for the installation site before order.
Availability and final configuration subject to confirmation.
