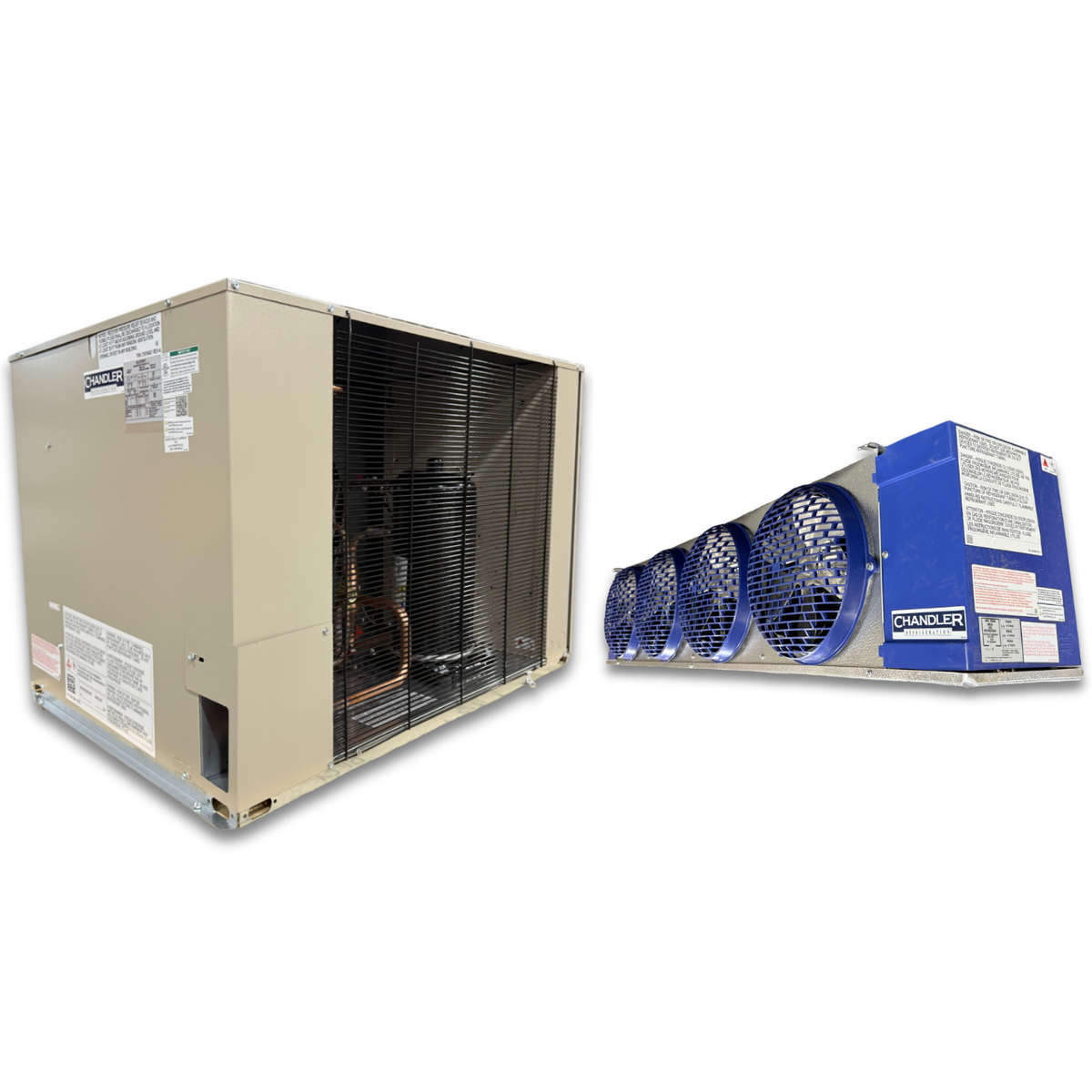

• New 5.5 HP Low Temp System, 3 phase 208-230 volt — supplier gallery view 1; Beige condensing unit front side view showing labels and blue/gray evaporator with four fans front side view showing labels.

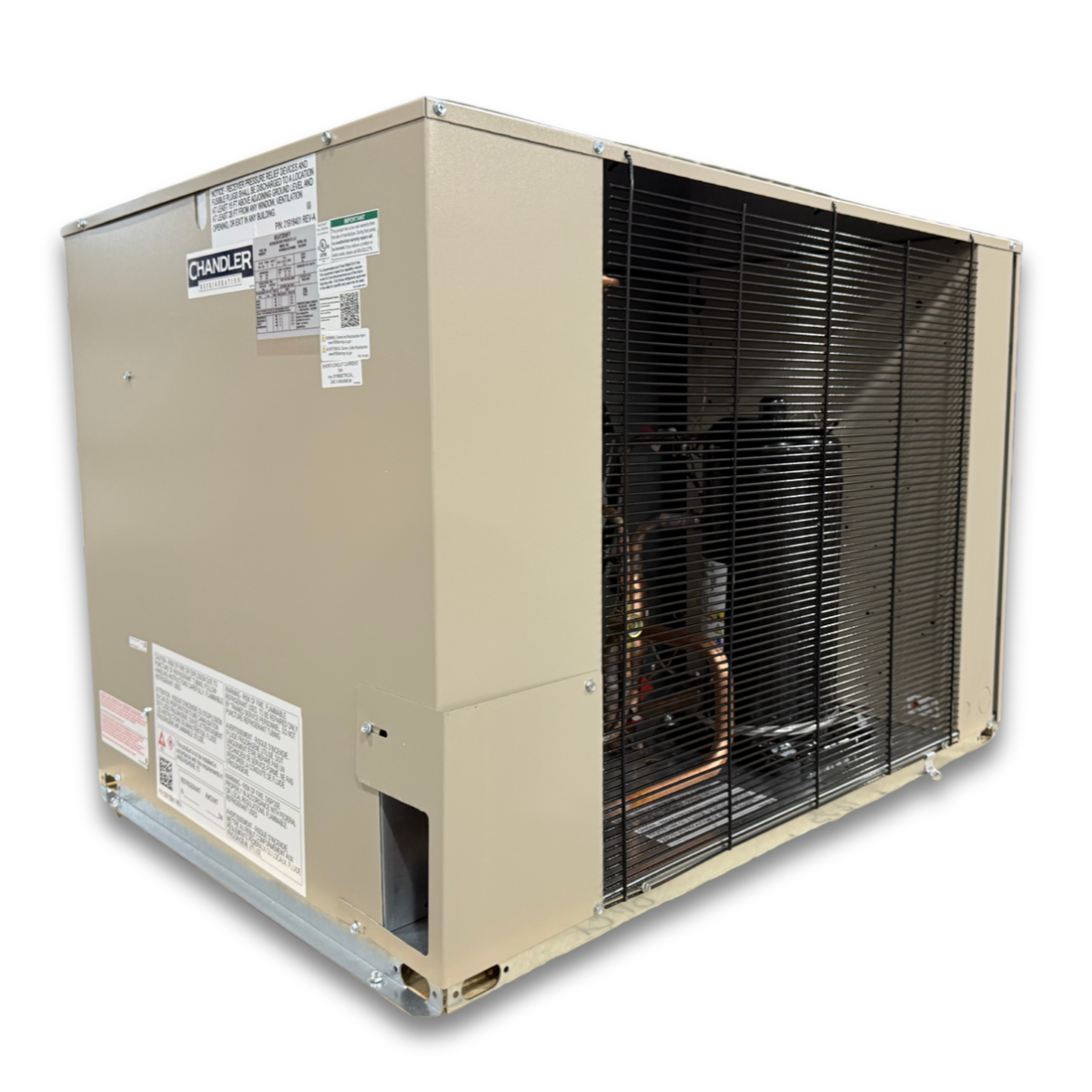

  • New 5.5 HP Low Temp System, 3 phase 208-230 volt — supplier gallery view 2; Beige condensing unit front side view showing labels.

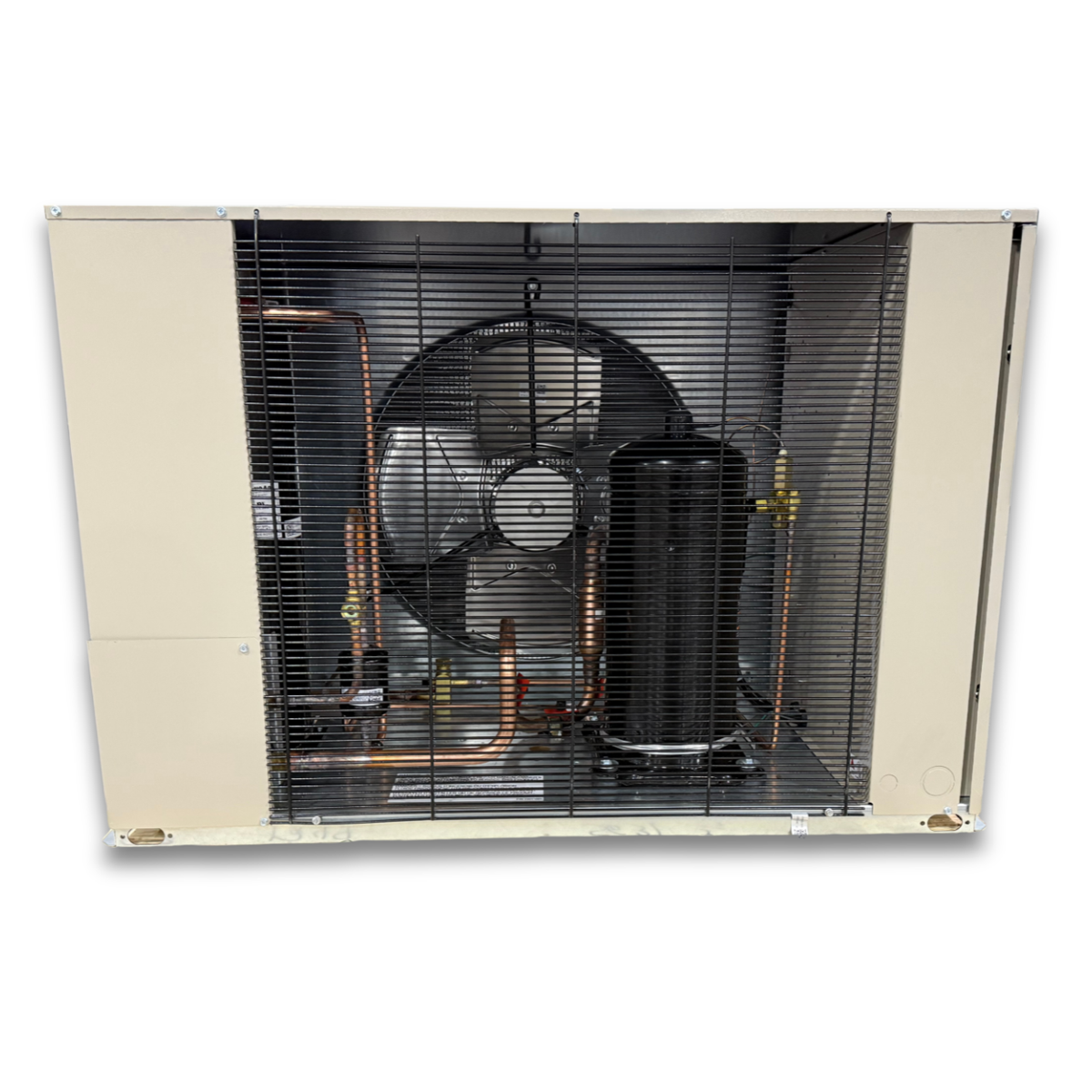

  • New 5.5 HP Low Temp System, 3 phase 208-230 volt — supplier gallery view 3; Beige condensing unit front showing the interior.

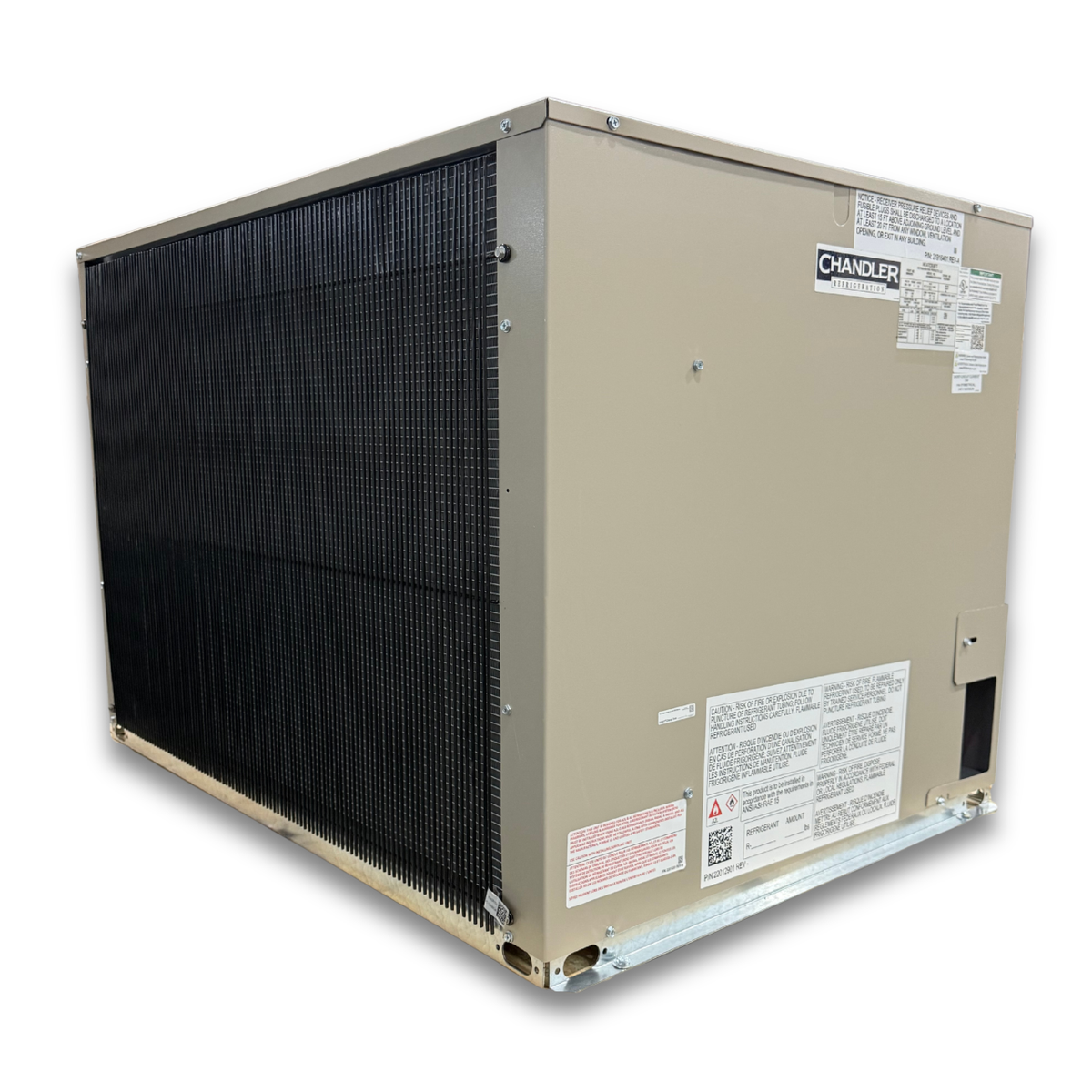

  • New 5.5 HP Low Temp System, 3 phase 208-230 volt — supplier gallery view 4; Beige condensing unit backside view.

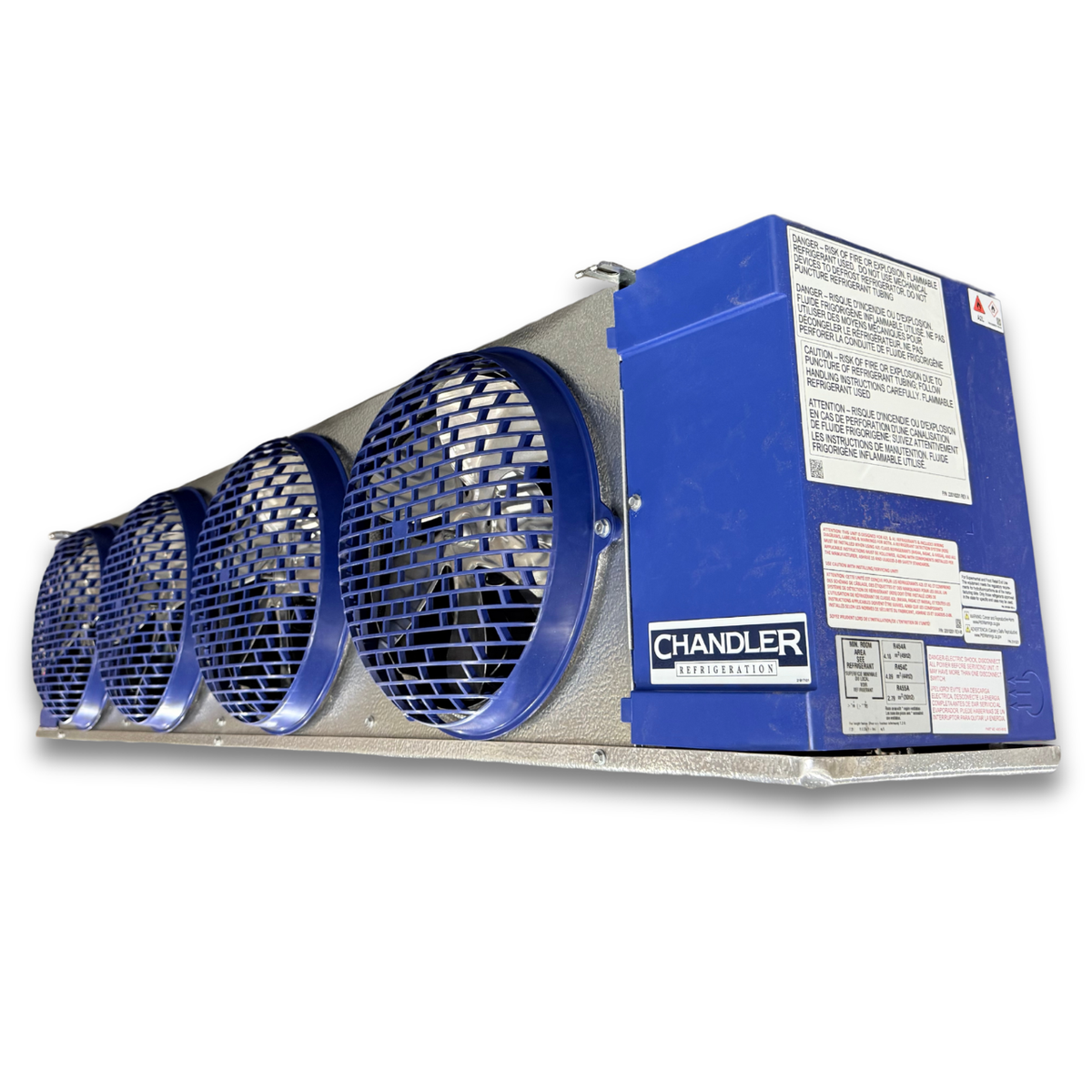

  • New 5.5 HP Low Temp System, 3 phase 208-230 volt — supplier gallery view 5; Blue/gray evaporator with four fans front side view showing labels.

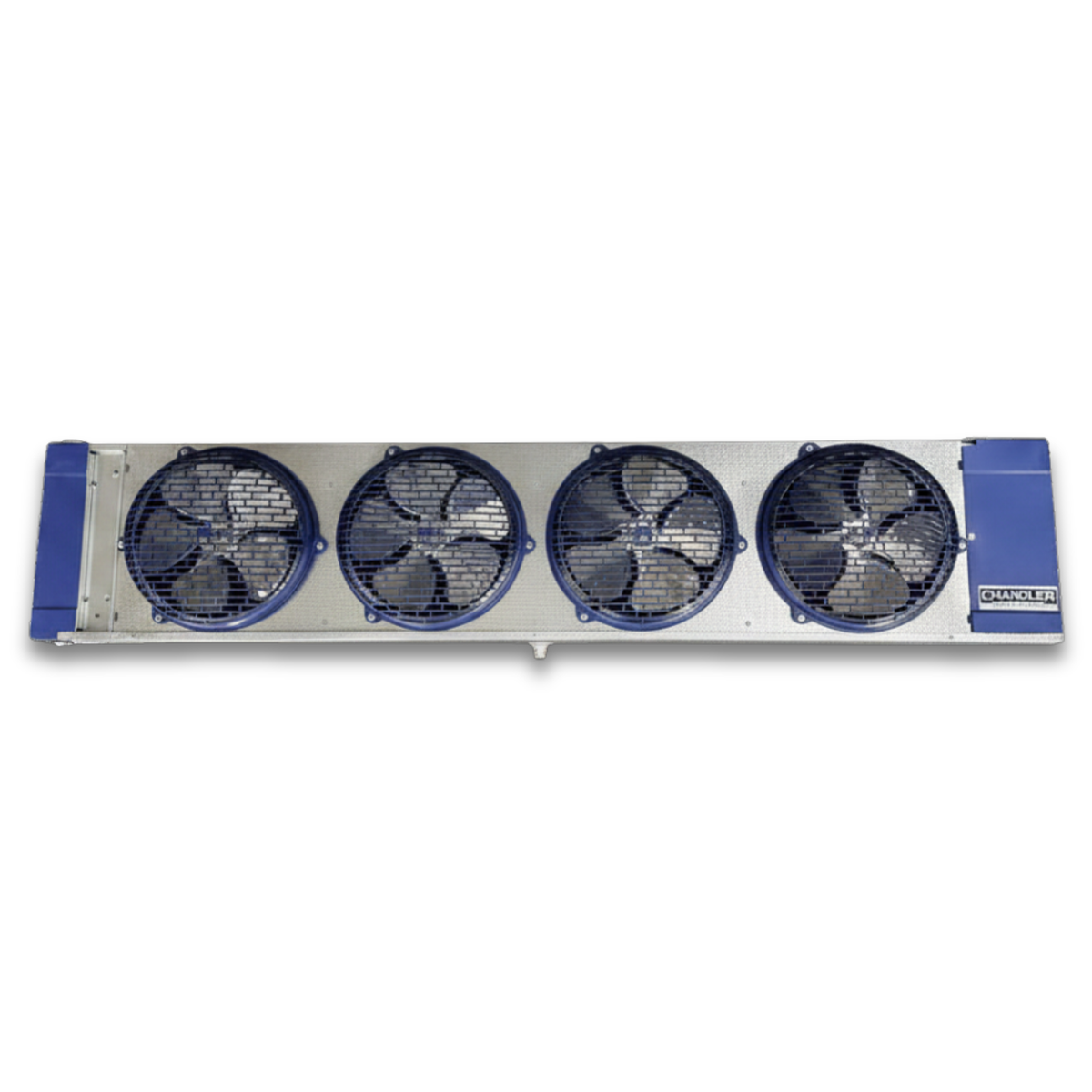

  • New 5.5 HP Low Temp System, 3 phase 208-230 volt — supplier gallery view 6; Blue/gray with four fans evaporator front view.

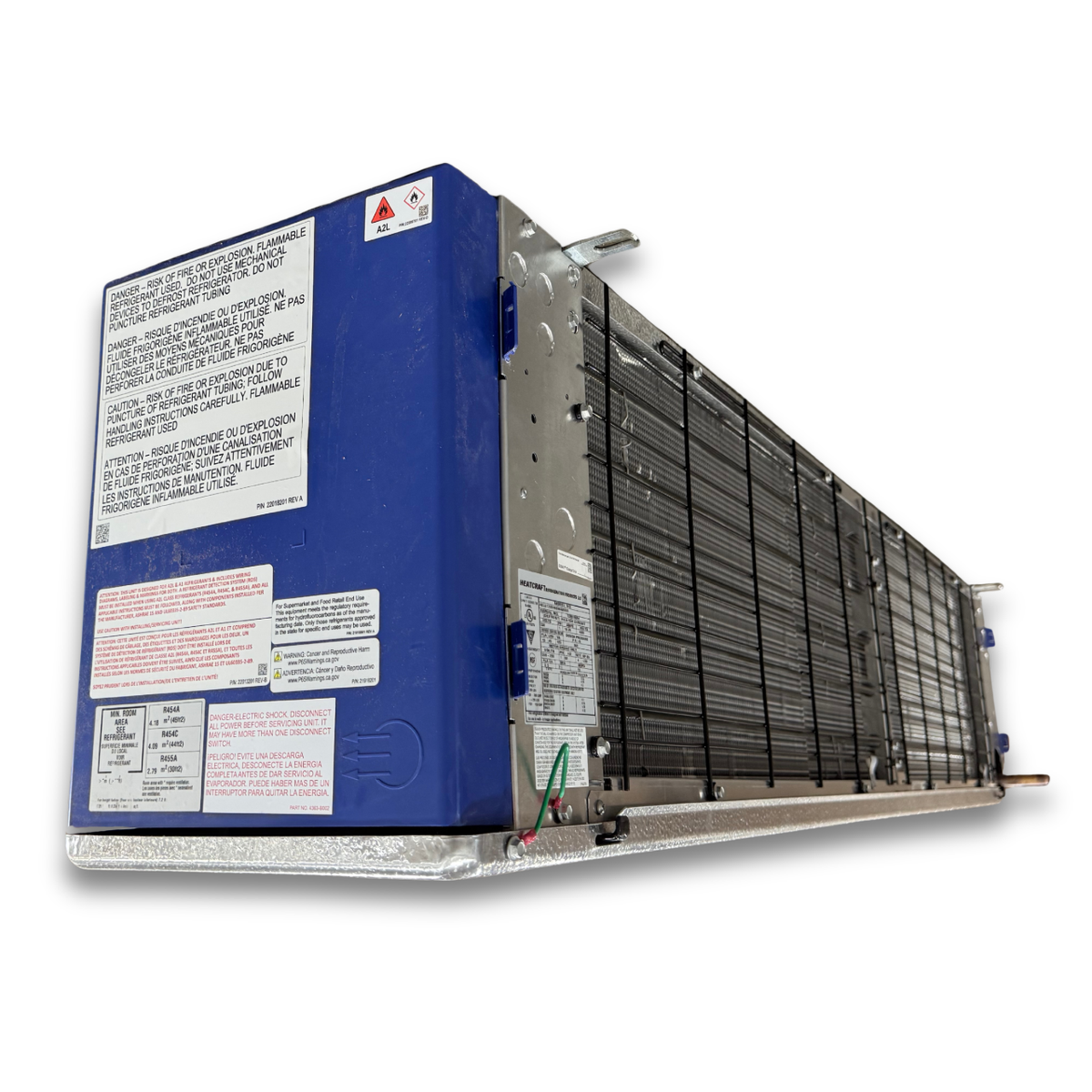

  • New 5.5 HP Low Temp System, 3 phase 208-230 volt — supplier gallery view 7; Blue/gray evaporator back view.
1 7

Chandler

New 5.5 HP Low Temp System, 3 phase 208-230 volt

New 5.5 HP Low Temp System, 3 phase 208-230 volt

R 159,156.00 ZAR
R 159,156.00 ZAR
Sale Sold out
Taxes included.

New 5.5 HP Low Temp System, 3 phase 208-230 volt. A matched refrigeration equipment package for commercial cold-storage applications.

Phase - Voltage 3 phase 208-230 volt
Item Condition New
BTUH Capacity Condensing Unit: 18,450 BTUH @ -15° SST/+95° ambient; Evaporator: 18,258 BTUH @ 10° T.D./R-449A
Manufacturer Chandler
Model # Condensing Unit: HCH0055LCACYA0000; Evaporator: HEL0170BY6EMAB0000
Defrost Electric Defrost
Dimensions Condensing Unit: 44” x 29” x 30”; Evaporator: 16”x 78” x 18”
Compressor / motor rating 5.5 HP
Refrigerants listed R-449A
Condensing Unit — Model HCH0055LBACYA0000
Condensing Unit — Electrical supply 208-230 V, 3 phase
Condensing Unit — Dimensions 44”D x 29”L x 30”H (approximately 1117.6 D × 736.6 L × 762.0 H mm)
Condensing Unit — Rated capacity 18,450 BTUH @ -15° SST/+95° ambient
Evaporator — Model HEL0170BY6EMAB0000
Evaporator — Electrical supply 208-230 V, 1 phase
Evaporator — Included equipment 2-speed EC motors
Evaporator — Dimensions 16”D x 78”L x 18”H (approximately 406.4 D × 1981.2 L × 457.2 H mm)
Evaporator — Rated capacity 18,258 BTUH @ 10° T.D./R-449A
System operating specification -5° freezer on R-449A.
Model HCH0055LBACYA0000 + HEL0170BY6EMAB0000

Room panels and installation are not included in this equipment listing. Confirm system sizing, component compatibility and operating conditions before order.

Electrical and refrigeration configuration must be confirmed for the installation site before order.

Availability and final configuration subject to confirmation.
