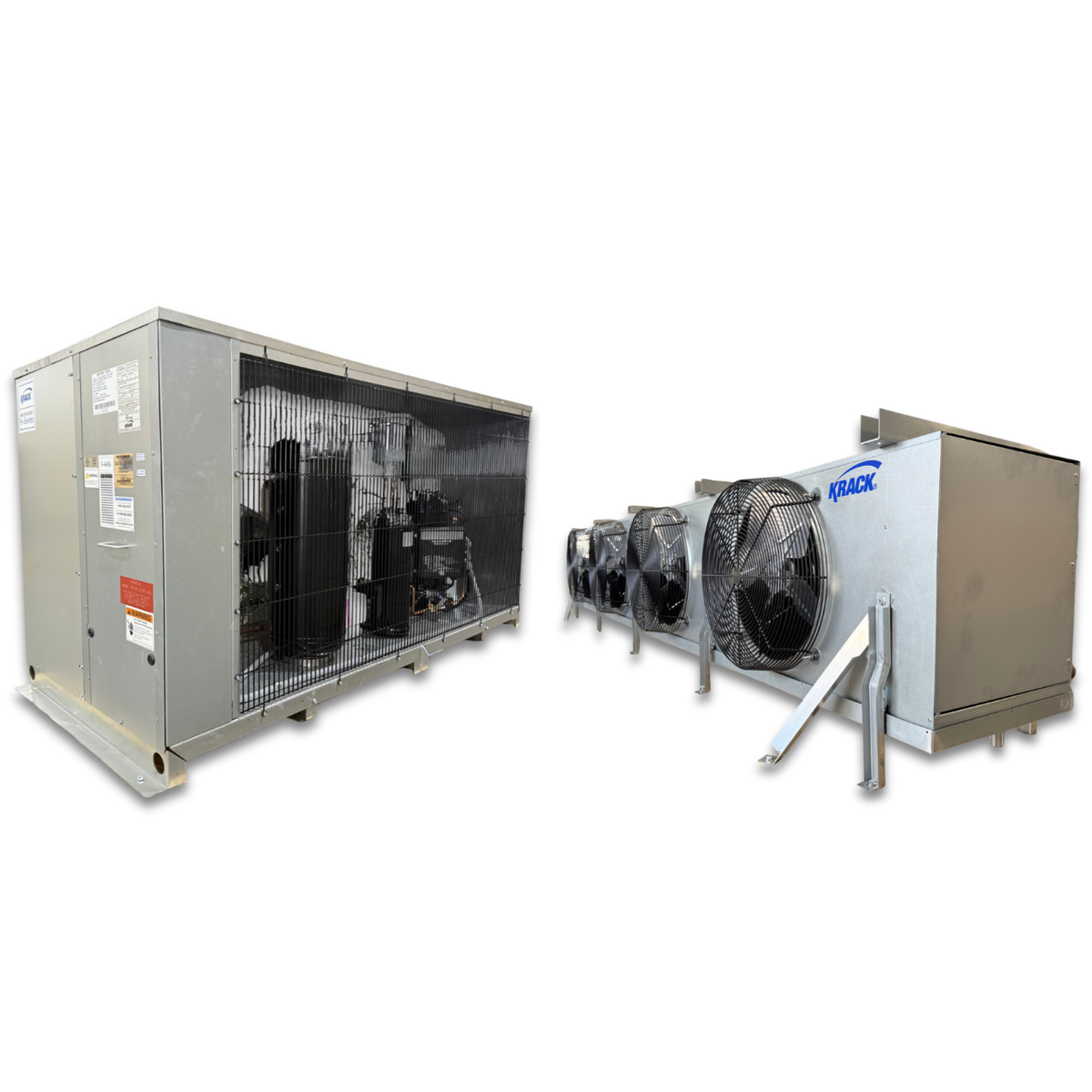

• New 10 HP Medium Temp System, 3 phase 460 volt — supplier gallery view 1; Gray condensing unit front side view showing labels and gray evaporator with four fans front side view showing labels.

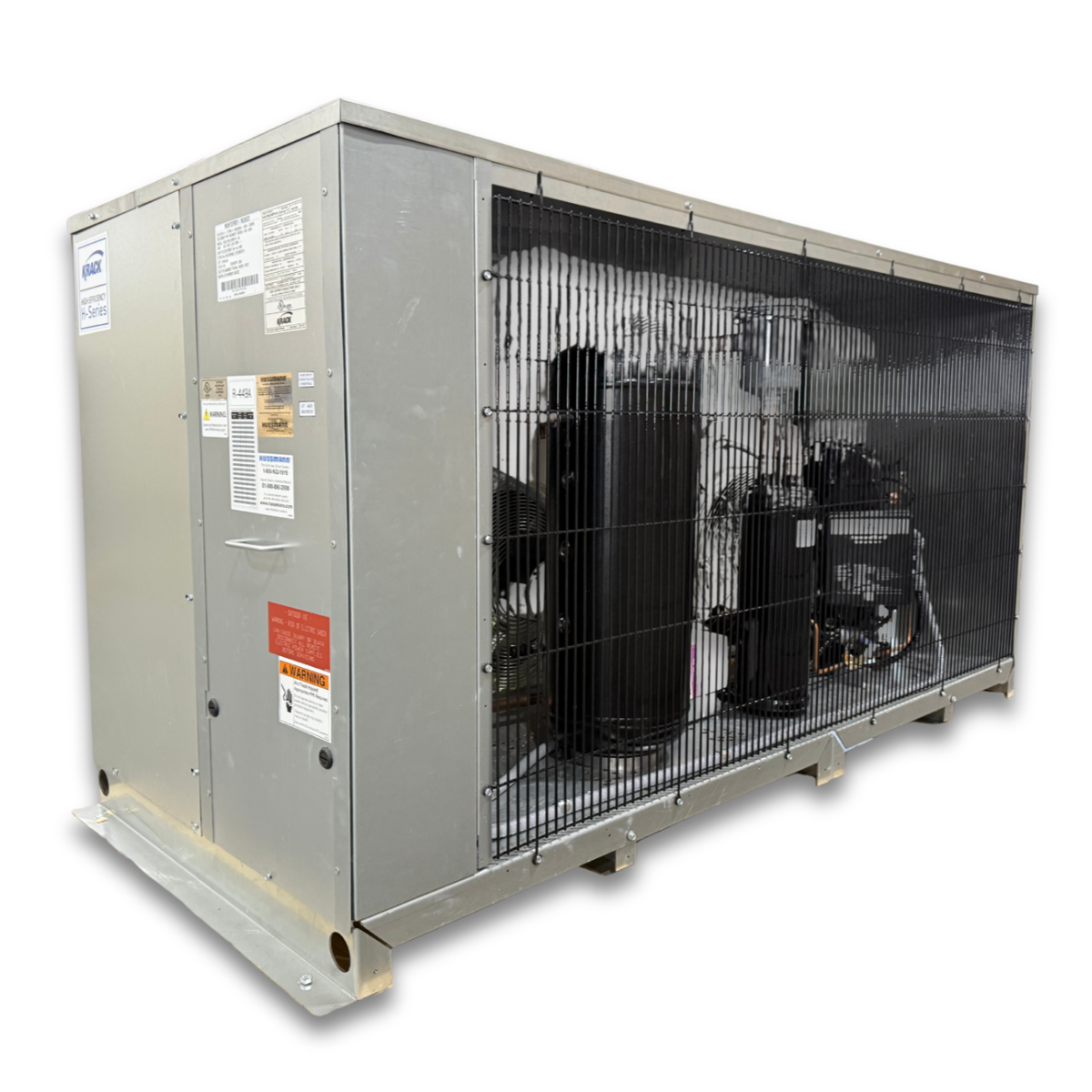

  • New 10 HP Medium Temp System, 3 phase 460 volt — supplier gallery view 2; Gray condensing unit front side view showing labels.

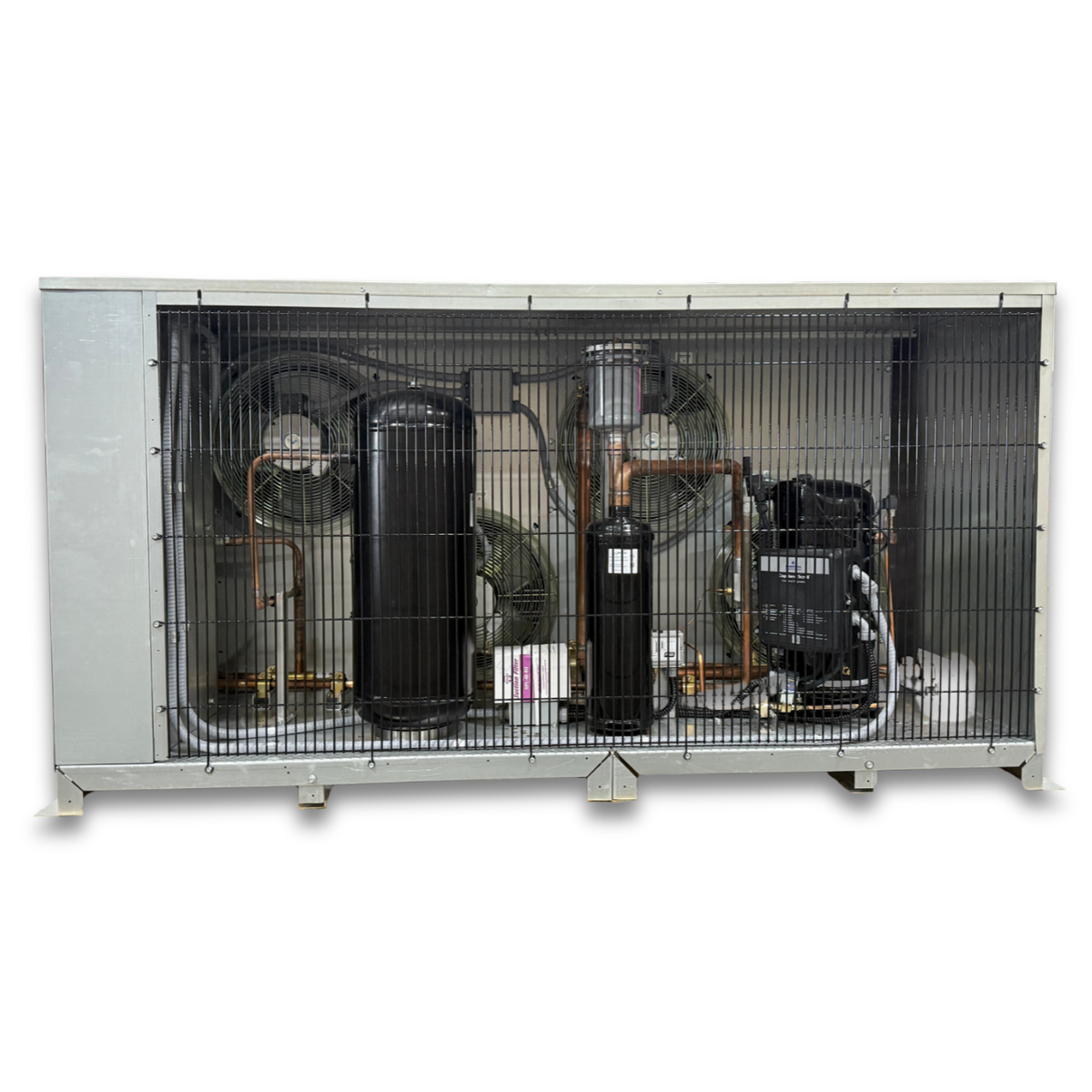

  • New 10 HP Medium Temp System, 3 phase 460 volt — supplier gallery view 3; Gray condensing unit front showing the interior.

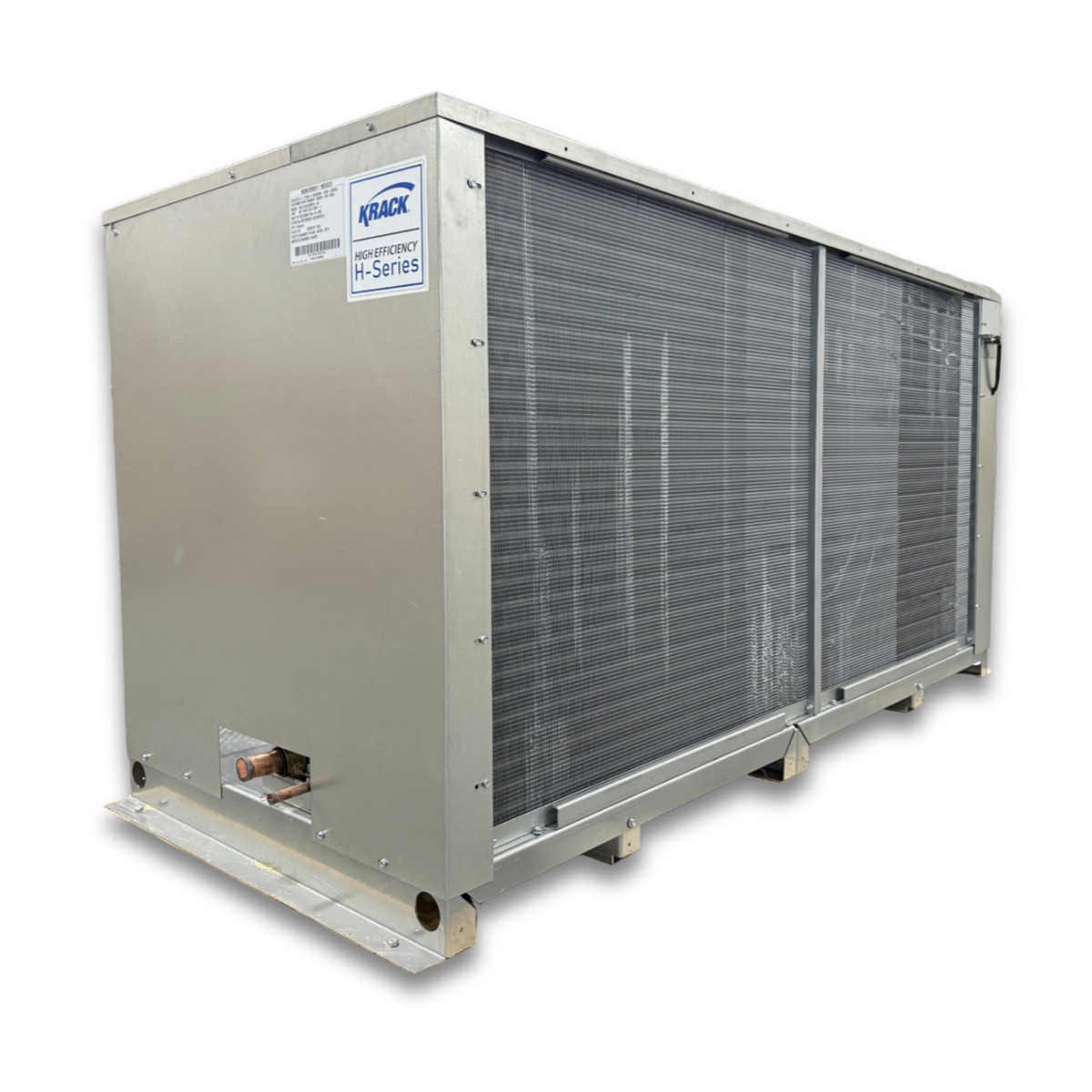

  • New 10 HP Medium Temp System, 3 phase 460 volt — supplier gallery view 4; Gray condensing unit back view.

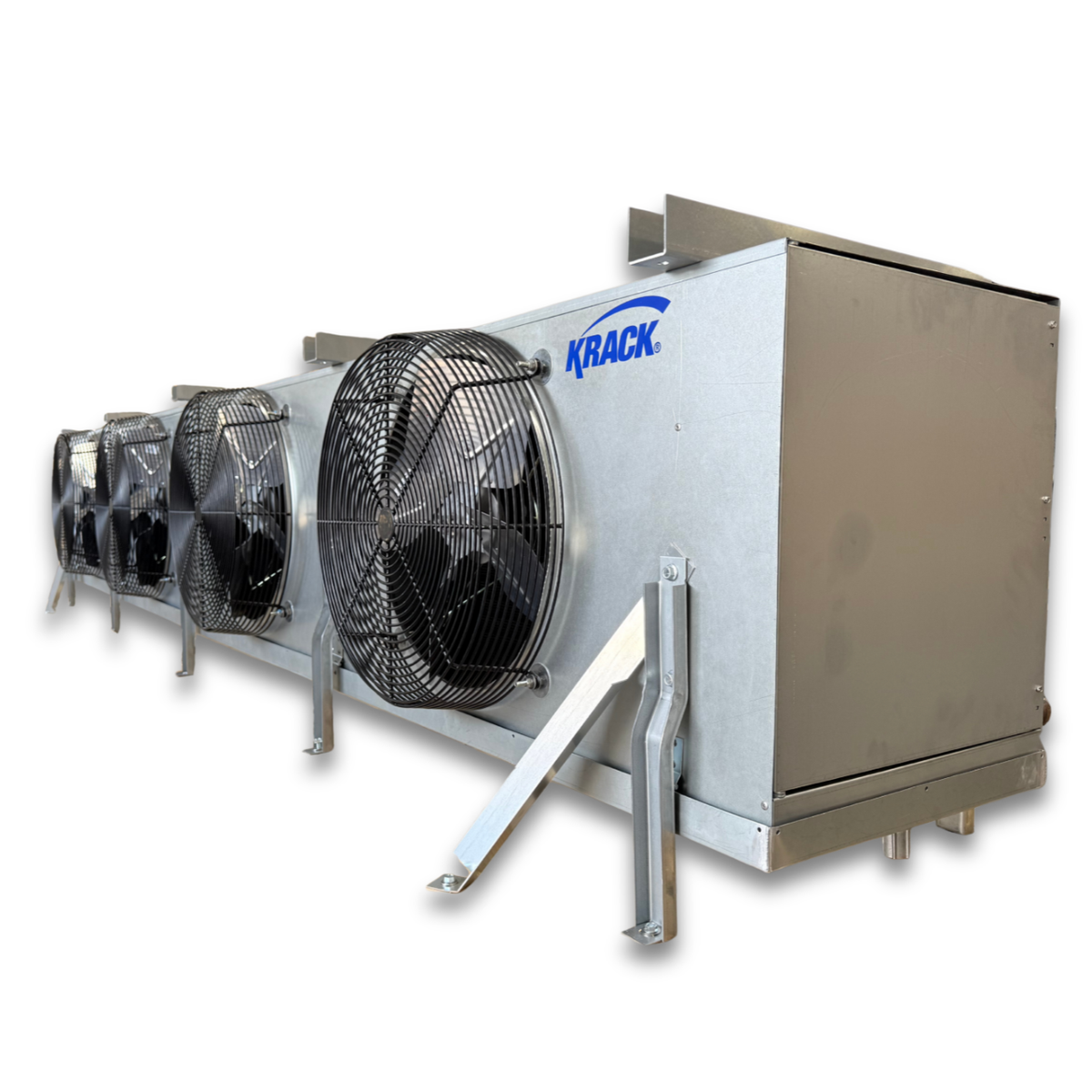

  • New 10 HP Medium Temp System, 3 phase 460 volt — supplier gallery view 5; Gray evaporator with four fans front side view showing labels.

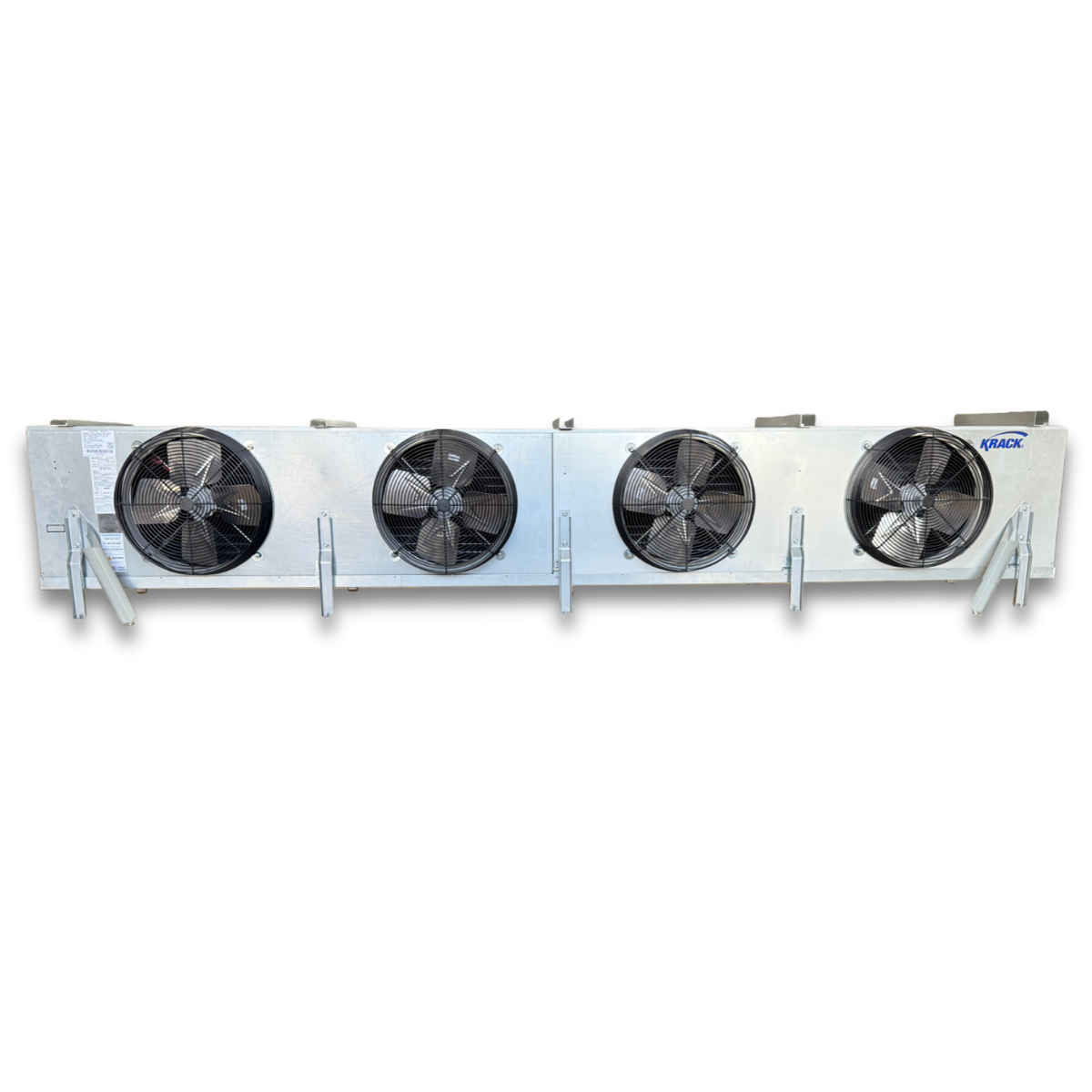

  • New 10 HP Medium Temp System, 3 phase 460 volt — supplier gallery view 6; Gray evaporator with four fans front view.

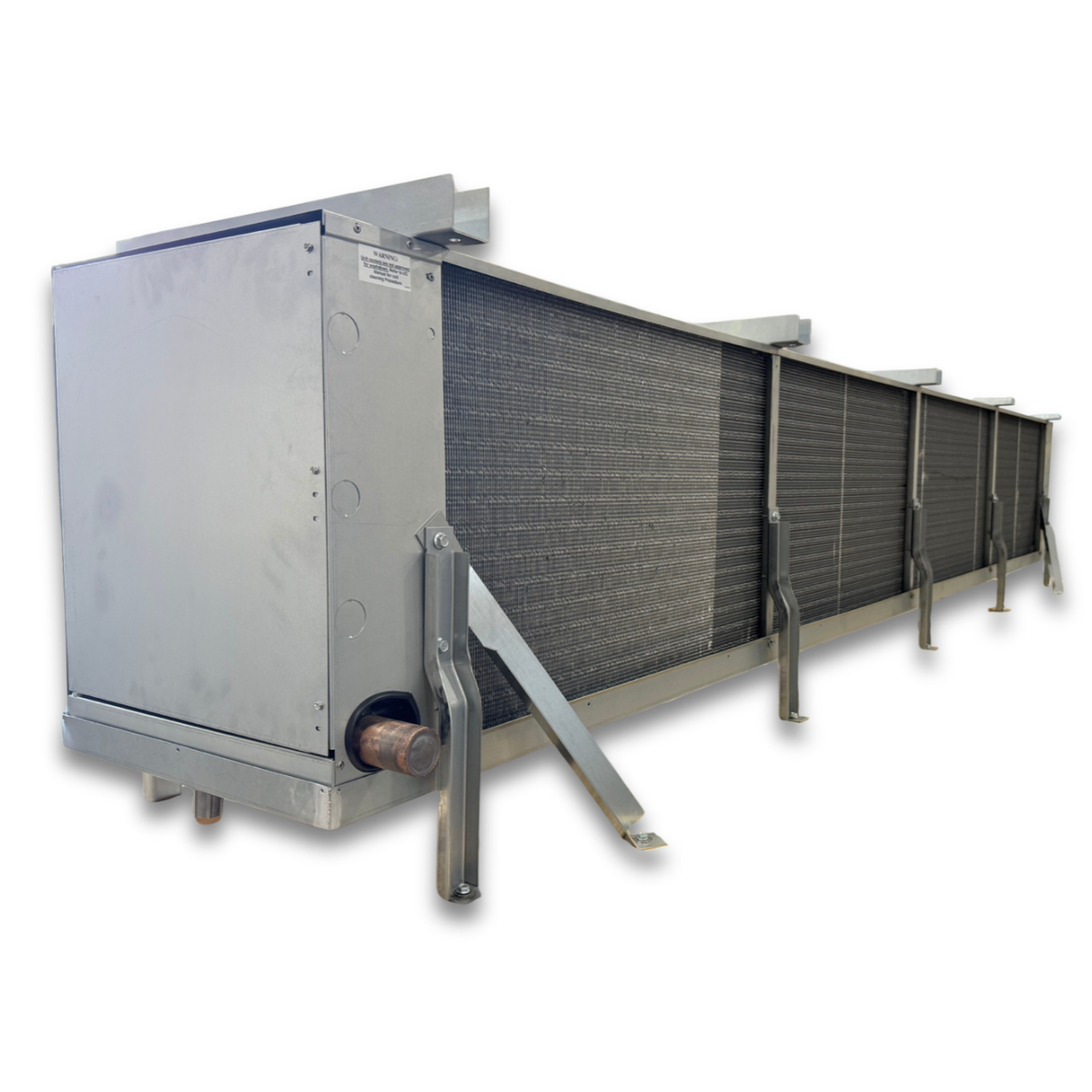

  • New 10 HP Medium Temp System, 3 phase 460 volt — supplier gallery view 7; Gray evaporator label.
1 7

Krack

New 10 HP Medium Temp System, 3 phase 460 volt

New 10 HP Medium Temp System, 3 phase 460 volt

R 305,087.00 ZAR
R 305,087.00 ZAR
Sale Sold out
Taxes included.

New 10 HP Medium Temp System, 3 phase 460 volt. A matched refrigeration equipment package for commercial cold-storage applications.

Item Condition New
BTUH Capacity Condensing Unit: 90,600 BTUH @ +25° SST/+95° ambient; Evaporator: 94,900 BTUH @ 10° T.D./R-449A
Manufacturer Krack
Model # Condensing Unit: HDSZ-1000MRMFF-D; Evaporator: MSD46A-0949RVB
Dimensions (W x D x H) Condensing Unit: 35” x 88” x 42”; Evaporator: 27” x 168” x 27”
Defrost Air Defrost
Dimensions Condensing Unit: 35” x 88” x 42”; Evaporator: 27” x 168” x 27”
Application / Temperature Medium Temp
Horsepower (HP) 10 HP
Refrigerant Class A1
Phase - Voltage 3 Phase 460 Volt
Compressor / motor rating 10 HP
Refrigerants listed R-449A
Condensing Unit — Model HDSZ-1000MRMFF-D
Condensing Unit — Electrical supply 460 V, 3 phase
Condensing Unit — Included equipment Air defrost timer and replaceable core suction filter
Condensing Unit — Dimensions 35”D x 88”L x 42”H (approximately 889.0 D × 2235.2 L × 1066.8 H mm)
Condensing Unit — Rated capacity 90,600 BTUH @ +25° SST/+95° ambient
Evaporator — Model MSD46A-0949RVB
Evaporator — Electrical supply 115 V, 1 phase
Evaporator — Included equipment Variable speed EC motors
Evaporator — Dimensions 27”D x 168”L x 27”H (approximately 685.8 D × 4267.2 L × 685.8 H mm)
Evaporator — Rated capacity 94,900 BTUH @ 10° T.D./R-449A
System operating specification +35° cooler on R-449A.
Model HDSZ-1000MRMFF-D + MSD46A-0949RVB

Room panels and installation are not included in this equipment listing. Confirm system sizing, component compatibility and operating conditions before order.

Electrical and refrigeration configuration must be confirmed for the installation site before order.

Availability and final configuration subject to confirmation.
