Condensing Unit: 31” x 44” x 30”; Evaporator: 17" x 78” x 17”
Dimensions
Condensing Unit: 31” x 44” x 30”; Evaporator: 17" x 78” x 17”
Application / Temperature
Medium Temp
Horsepower (HP)
3 HP
Refrigerant Class
A1 / A2L
Phase - Voltage
3 Phase 208-230 Volt
Compressor / motor rating
3 HP
Refrigerants listed
R-449A

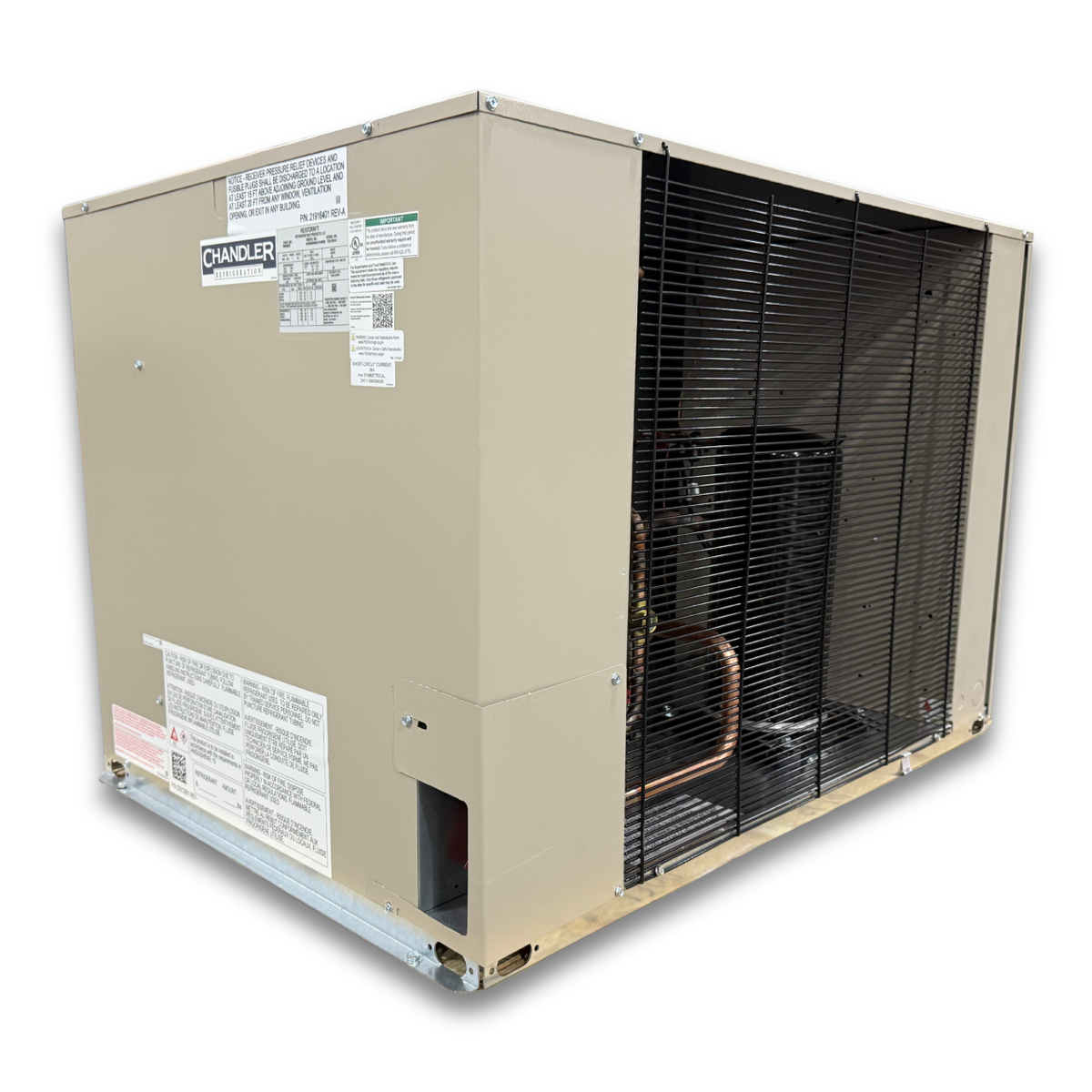

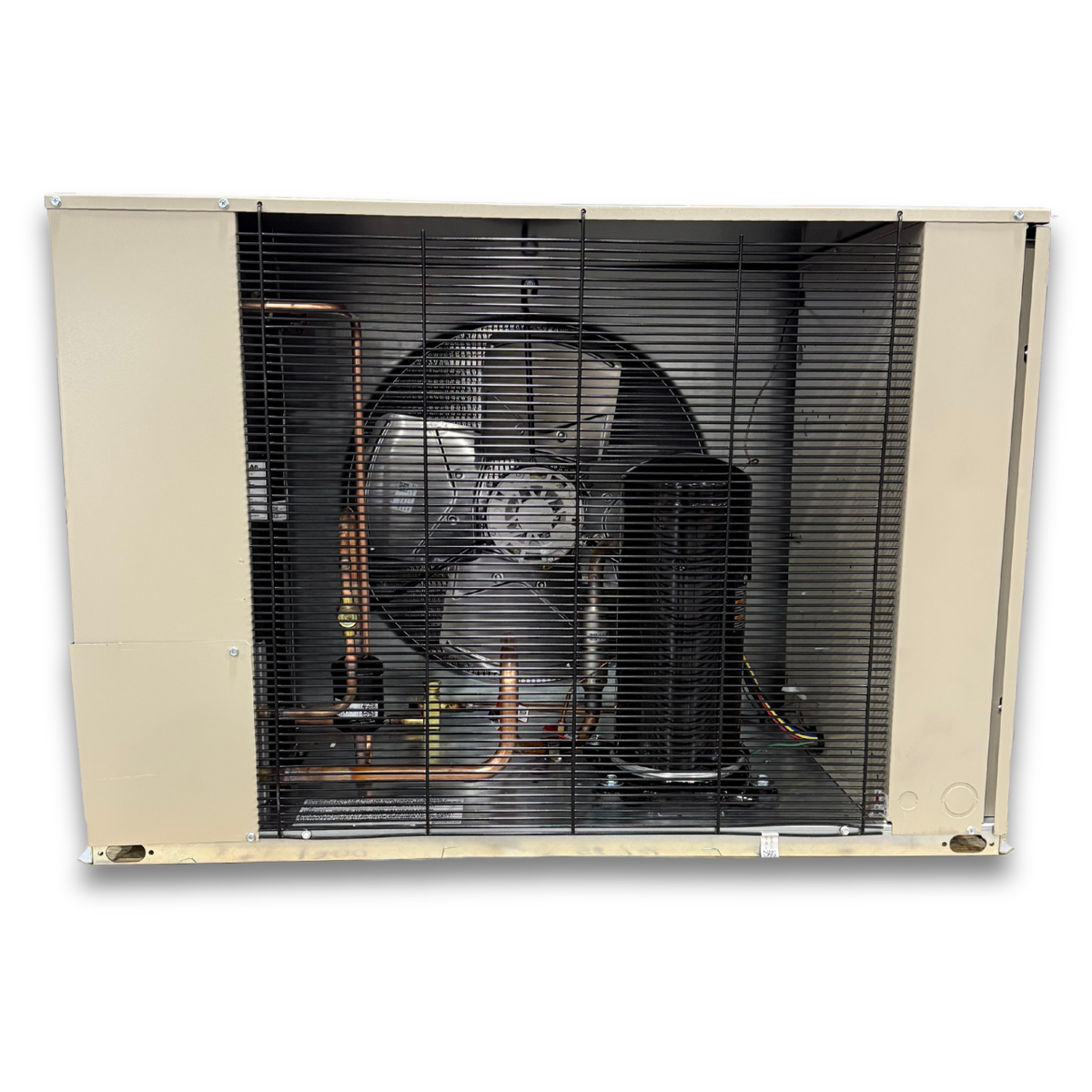

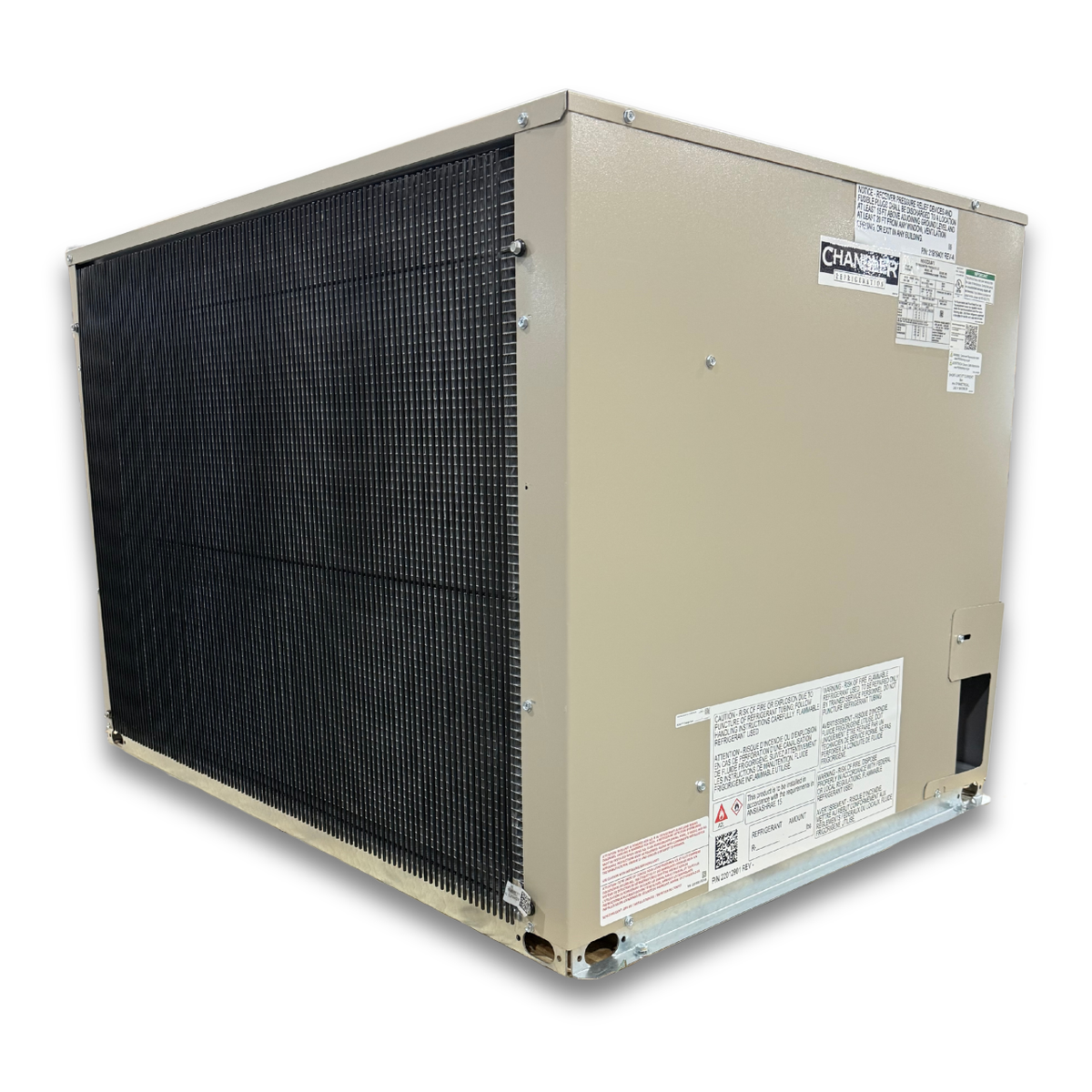

Condensing Unit — Model
HCH0030MCACYA0000
Condensing Unit — Electrical supply
208-230 V, 3 phase
Condensing Unit — Dimensions
31”D x 44”L x 30”H (approximately 787.4 D × 1117.6 L × 762.0 H mm)
Condensing Unit — Rated capacity
27,410 BTUH @ +25° SST/+95° ambient

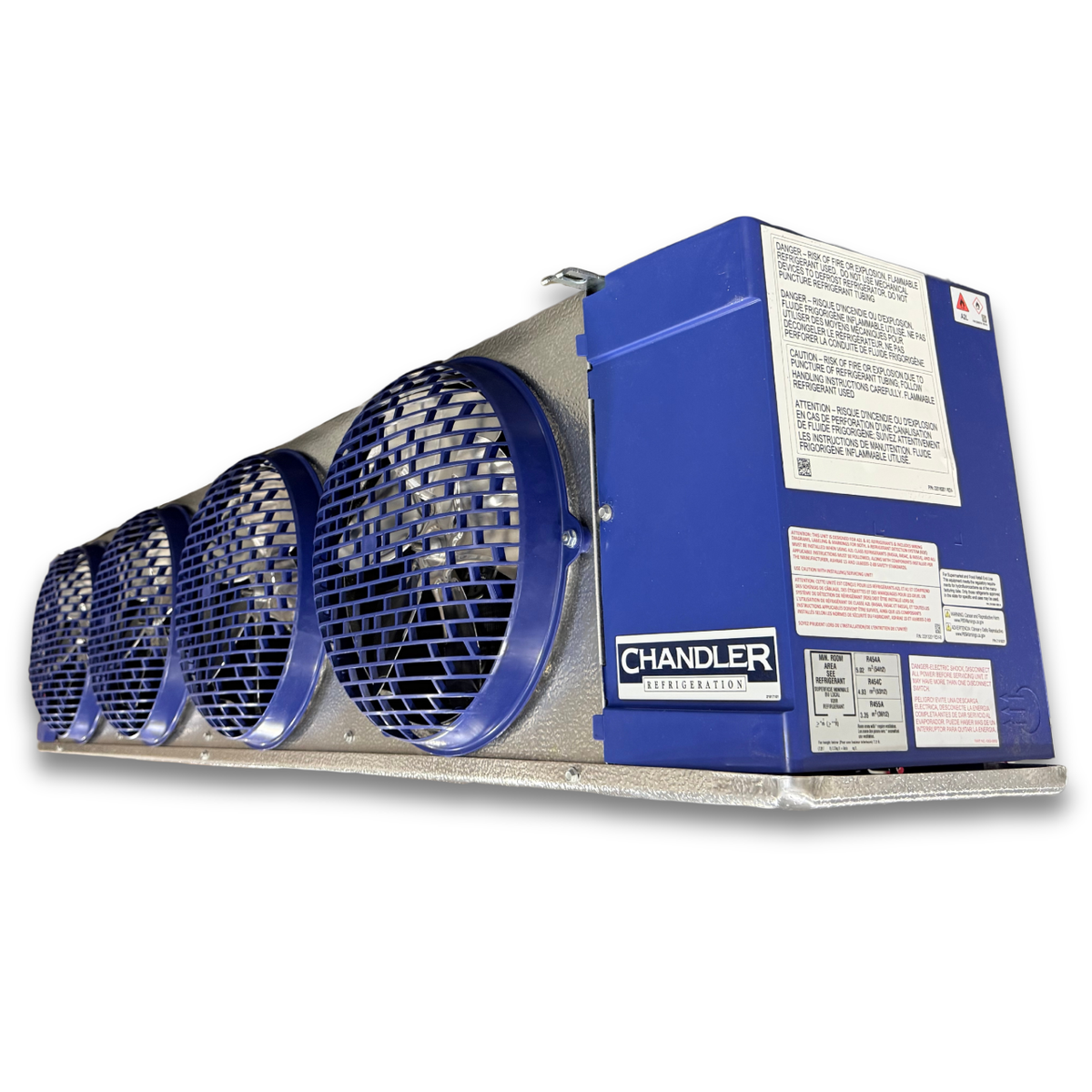

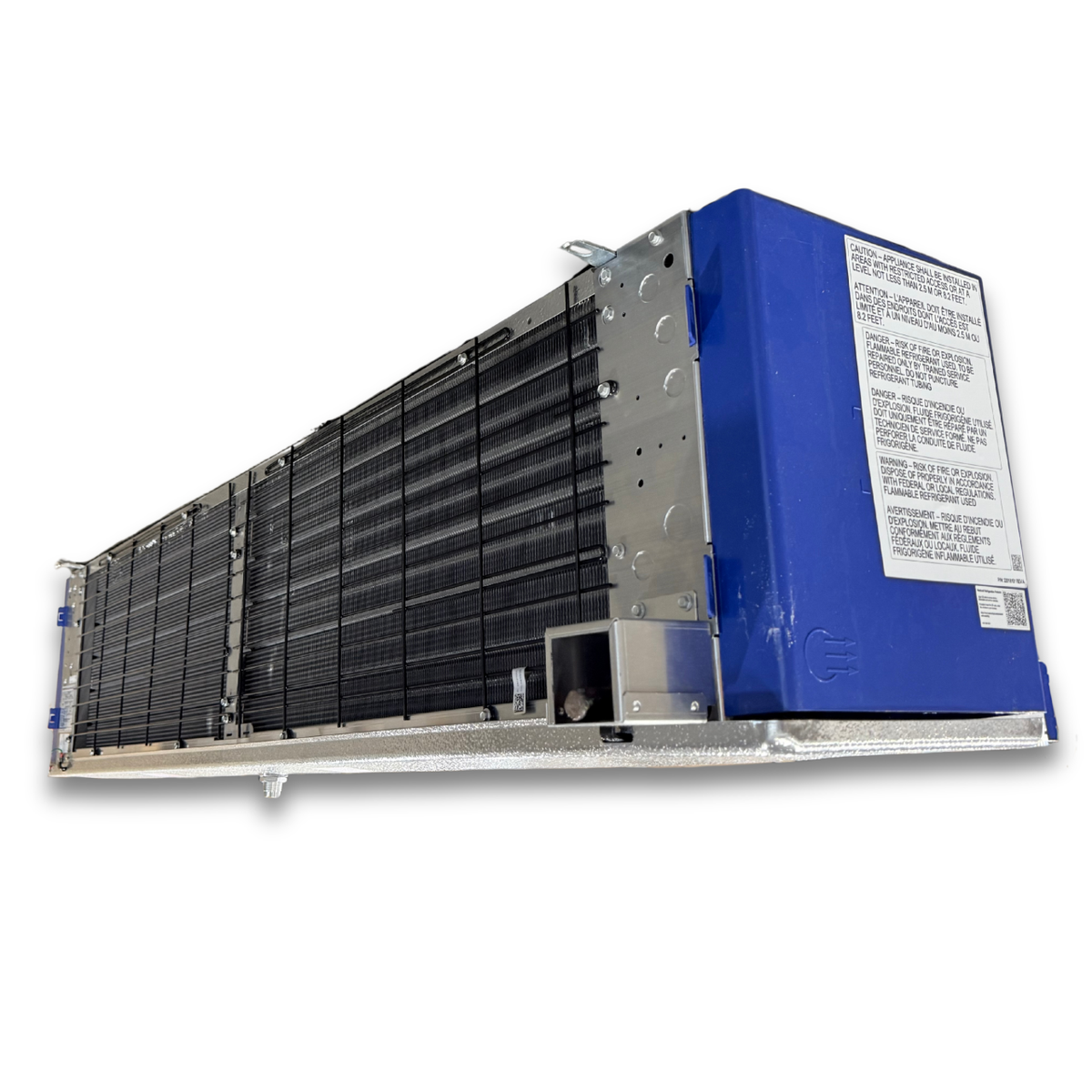

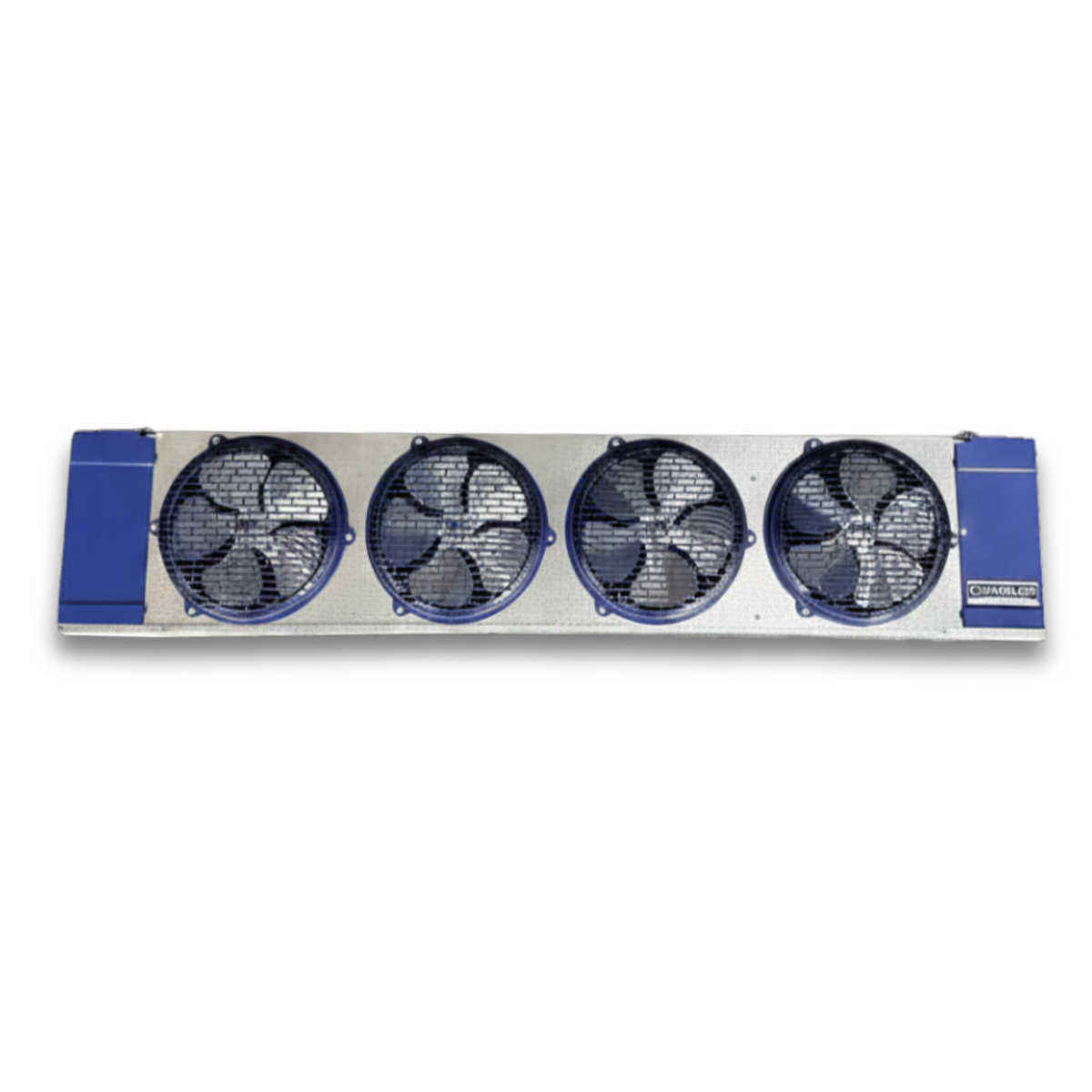

Evaporator — Model
HEL0250AY6AMAB0000
Evaporator — Electrical supply
115 V, 1 phase
Evaporator — Included equipment
2-speed EC motors
Evaporator — Dimensions
17”D x 78”L x 17”H (approximately 431.8 D × 1981.2 L × 431.8 H mm)
Evaporator — Rated capacity
24,600 BTUH @ 10° T.D./R-449A
System operating specification
+35° cooler on R-449A.

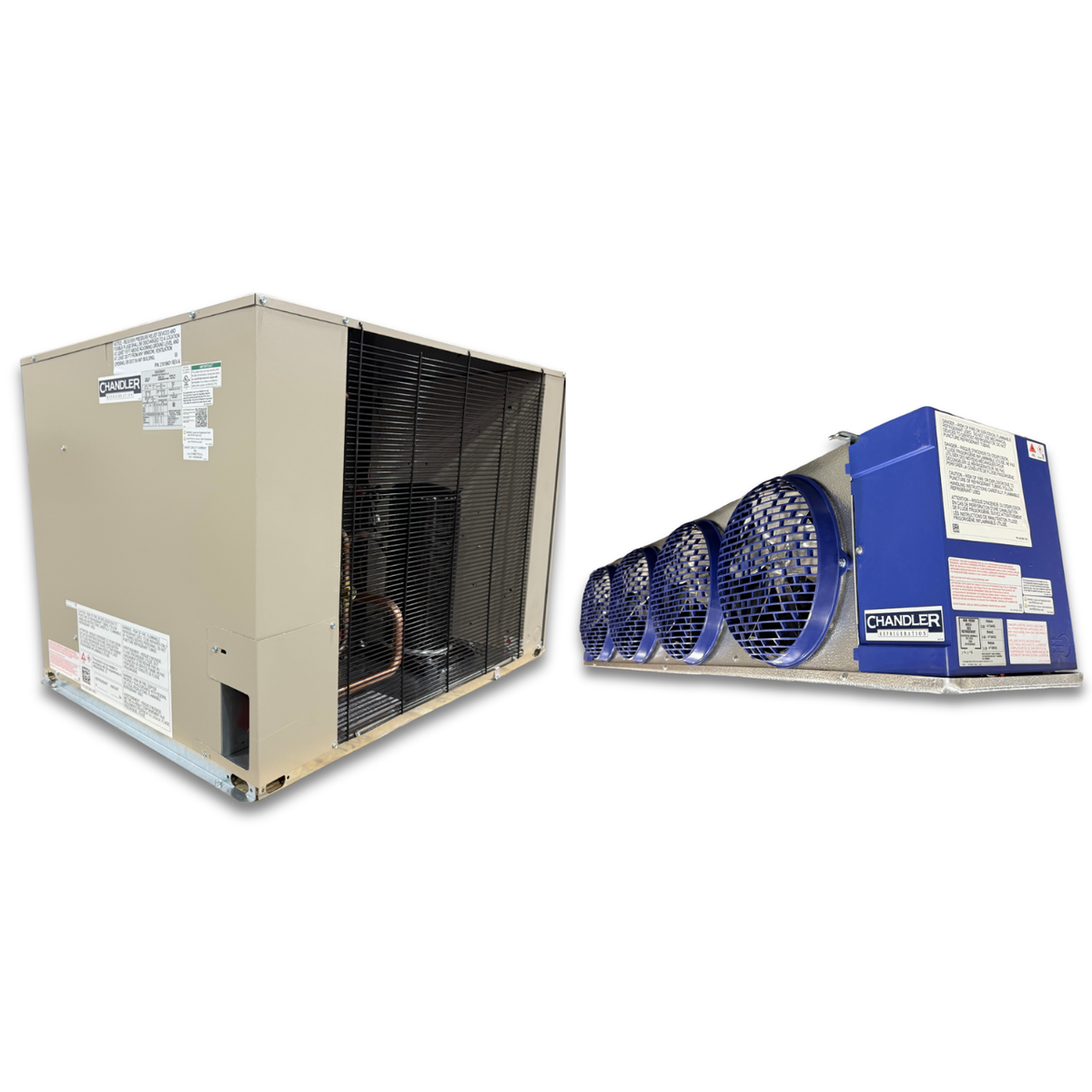

Model
HCH0030MCACYA0000 + HEL0250AY6AMAB0000
Room panels and installation are not included in this equipment listing. Confirm system sizing, component compatibility and operating conditions before order.
Electrical and refrigeration configuration must be confirmed for the installation site before order.
Availability and final configuration subject to confirmation.
